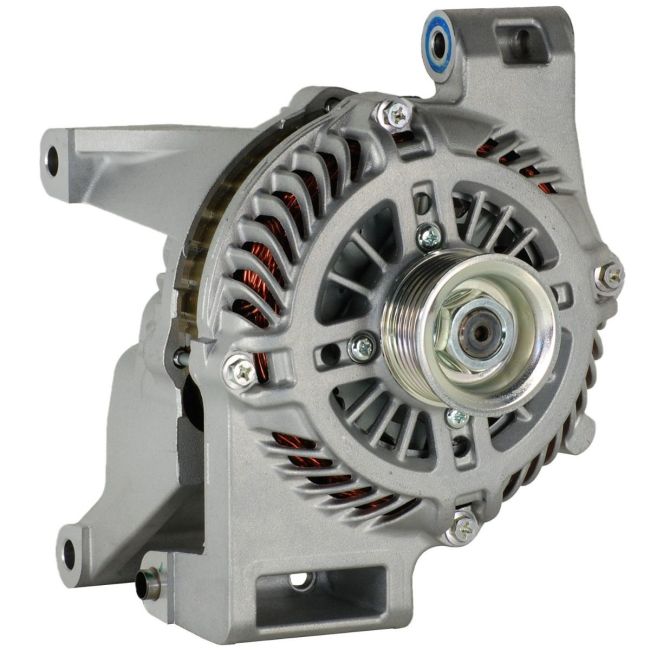

Xpart new Alternator for Mazda 3, Mazda 5 — 12V, 90A, Clockwise Rotation, 6-Groove Solid Pulley, Mount Holes: 8.6mm/Unthreaded, 10.3mm/Unthreaded — Replaces Arrowhead A3TG1391A, A3TG4791

CAD$0.00
No Online Payment Required
Pay Upon Delivery
(GTA Area Only)
Availability:
Out of stock
SKU
XAM11174

Description

Make Model Engine Year
Mazda 3 1999cc, 2.0L L4 2009
Mazda 3 2.0L 2004, 2005, 2006, 2007, 2008, 2009
Mazda 3 2.3L 2004, 2005, 2006
Mazda 3 2.3L 2007, 2008, 2009
Mazda 3 2000cc, 2.0L L4 2004, 2005, 2006, 2007, 2008
Mazda 3 2000cc, 2.0L L4 2004, 2005, 2006, 2007, 2008, 2009
Mazda 3 2000cc, 2.0L L4 2009
Mazda 3 2000cc, 2.0L L4 2009
Mazda 3 2000cc, 2.0L L4 2009
Mazda 3 2000cc, 2.0L L4 2009
Mazda 3 2260cc, 2.3L L4 2004, 2005, 2006
Mazda 3 2260cc, 2.3L L4 2007, 2008, 2009
Mazda 3 2260cc, 2.3L L4 2009, 2009
Mazda 3 2260cc, 2.3L L4 2004, 2005, 2006, 2006, 2007, 2007, 2008, 2008, 2009
Mazda 3 2260cc, 2.3L L4 2009, 2009
Mazda 3 L4 2.0L 2000CC 122CID 2007-2009
Mazda 3 L4 2.3L 2260CC 2009-2009
Mazda 3 L4 2.3L 2260CC 2007-2008
Mazda 5 2006 2006
Mazda 5 2.3L 2006, 2007
Mazda 5 2260cc, 2.3L L4 2006, 2007
Mazda 5 2260cc, 2.3L L4 2006, 2007, 2007

Specification

Lester 11008, 11174
Manufacture Mitsubishi (Not OEM)
Family A3TG
Volt 12
Amps 90
Regulator Clock 9:00
Rotation Direction Clockwise (Right)
Mount Hole ID 1 8.600mm
Mount Hole 1 Type Unthreaded
Mount Hole ID 2 10.300mm
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 8.600mm
Mount Hole 3 Type Unthreaded
Mount Hole ID 4 10.300mm
Mount Hole 4 Type Unthreaded
Mounting Ear Thickness 1.772"
Mounting Ear Thickness 45mm
Mounting Ear 2 Thickness 1.772"
Mounting Ear 2 Thickness 45mm
Mounting Ear 3 Thickness 3.130"
Mounting Ear 3 Thickness 79.500mm
Mounting Ear 4 Thickness 2.953"
Mounting Ear 4 Thickness 75mm
Fan Location Internal
Regulator Location Internal
Terminal ID 2 B+
Terminal 2 Size M8x1.25
Terminal ID 3 P
Terminal 3 Size Spade
Terminal ID 4 D
Terminal 4 Size Spade
Polarity Negative
Number of Grooves 6
Pulley Type Solid
Pulley Outer Diameter 2.087"
Pulley Outer Diameter 53mm
Decoupled Or Clutch Pulley No
Fan Type Internal
Ground Type Negative
Plug Clock Rear View Main Mounting Ear At 6 O Clock 9
Plug Type 303
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal

Replacement Part Number

Arrowhead A3TG1391A, A3TG4791, AMT0144, AMT0217
Bosch AL4074X, AL4238X
Bosch Aftermarket AL4074X (Reman)
Bosch Service Europe 0-986-UR0-364
Denso 210-4214
J&N Electrical Products 400-48144
Lester 11008, 11174
IAT A11174
Lucas Electric LRA02915
Mazda LF1F-18-300, LF1F18-300, LF1F18-300R00, LF50-18-300, LF50-18-300A, LF1F-18-300R00
Mitsubishi A003TG1391, A003TG1391A, A003TG1391AZC, A003TG4791, A003TG4791ZC, A3TG1391, A3TG1391A, A3TG1391AZC, A3TG4791, A3TG4791ZC
Mitsubishi Electric A003TG4791, A003TG4791ZC, A3TG4791, A3TG4791ZC
PIC 203-5084
Voltux V2-11174, V2-11174R
WAI 11174N
Xpart Global XAM11174

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
