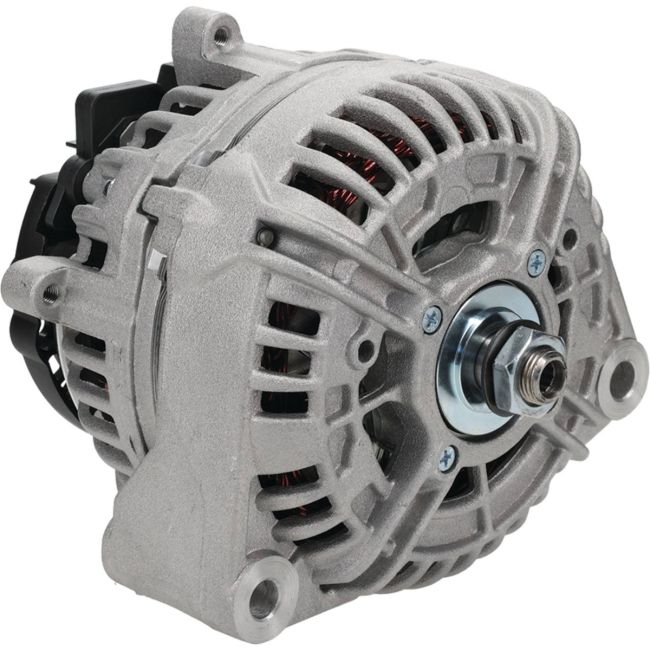

Xpart new Alternator for Agco 660B, 670B, MT525B, MT535B, MT545B, MT555B, MT565B, MT575B – Fendt 9300R, 9350R – John Deere 6520, 6620, 6920, 7130, 7330, 7530 – 12V 150A

CAD$0.00
No Online Payment Required
                       Free Same Day Delivery(GTA)
                             Pay Upon Delivery(GTA)
     1 - 2 Days Ontario&Quebec
       2 - 5 Days All Over Canada
Availability:
Out of stock
SKU
XAB12782

Description

make model engine years
Agco 660B 8.4L, Diesel
Agco 670B 8.4L, Diesel
Agco MT525B 6-403, Diesel
Agco MT525B 6-403, Diesel
Agco MT535B 6-403, Diesel
Agco MT535B 6-403, Diesel
Agco MT545B 6-403, Diesel
Agco MT545B 6-403, Diesel
Agco MT555B 6-403, Diesel
Agco MT555B 6-403, Diesel
Agco MT565B 6-365
Agco MT575B 6-403, Diesel
Agco MT575B 6-403, Diesel
Agco RT110A 6-402, Diesel
Agco RT120A 6-402, Diesel
Agco RT140A 6-402, Diesel
Agco RT155A 6-402, Diesel
Agco RT165A 6-452, Diesel
Agco RT180A 4WD 6-452, Diesel
Agco RT180A 4WD 6-452, Diesel
Fendt 9300R 0
Fendt 9350R 0
John Deere 5080M 4-276, Diesel
John Deere 5080R 4-276, Diesel
John Deere 5090M 4-276, Diesel
John Deere 5090R 4-276, Diesel
John Deere 6105M 4.5L, Diesel
John Deere 6105R 4.5L, Diesel
John Deere 6115M 4.5L, Diesel
John Deere 6115R 4.5L, Diesel
John Deere 6120 4-276, Diesel
John Deere 6120 4-276, Diesel
John Deere 6125M 4.5L, Diesel
John Deere 6125R 4.5L, Diesel
John Deere 6140M 4.5L, Diesel
John Deere 6140R 6.8L, Diesel
John Deere 6150M 6.8L, Diesel
John Deere 6150R 6.8L, Diesel
John Deere 6150RH Hi-Crop 6.8L, Diesel
John Deere 6170M 6.8L, Diesel
John Deere 6220 4-276, Diesel
John Deere 6220 4-276, Diesel
John Deere 6320
John Deere 6320
John Deere 6320L
John Deere 6320L
John Deere 6330 Premium 4.5L , Diesel
John Deere 6420
John Deere 6420
John Deere 6420L
John Deere 6430 4.5L , Diesel
John Deere 6520 6.8L
John Deere 6520L 4.5L
John Deere 6620 6.8L
John Deere 6820
John Deere 6820
John Deere 6920 6.8L
John Deere 7130 6-414 , Diesel
John Deere 7220 6.8L
John Deere 7230 Premium
John Deere 7230 Premium 6-414 , Diesel
John Deere 7320 6.8L
John Deere 7330 Premium 6-414 , Diesel
John Deere 7330 6-414 , Diesel
John Deere 7420
John Deere 7430 Premium 6-414 , Diesel
John Deere 7520
John Deere 7530 Premium 6-414 , Diesel
John Deere Harvester 7950 2009-2015
John Deere Irrigation Set 6068HL6 6.8L 6801CC 415CID 2001-2008
John Deere Trailer Mounted Generator Sets 6068TL6 6.8L 6801CC 415CID 2001-2008
Tug GT-110 Tier I/II

Specification

Lester 12381, 12782
Manufacture Bosch (Not OEM)
Family Bosch NCB2
Volt 12
Amps 150
Rotation Direction Clockwise (Right)
Mount Hole ID 1 10.500mm
Mount Hole ID 2 10.500mm
Mounting Ear 2 Thickness 56mm
Alt Mounting Foot Thickness 56mm
Fan Location Internal
Regulator Location Internal
Terminal ID B+
Terminal Size M8x1.25
Terminal ID 2 D+
Terminal 2 Size M5-0.8
Terminal ID 3 W
Terminal 3 Size Spade
Polarity Negative
Shaft M16-1.5
Fan Type Internal
Regulator Type Internal

Replacement Part Number

AGCO V836864048
Arrowhead ABO0422, B0124615057, IA1117, IA1545, MG52
Bosch 0-123-515-500, 0-123-515-501, 0-123-515-503, 0124615043, 0-124-615-043, 0-124-615-057, 1986A00942
J&N 400-24090, 400-24140, 400-29057
John Deere A166647, AL119537, AL166647, AL171541, SE501830
KHD 118-2027
Lester 12381, 12782
Letrika/Iskra IA1117
Lucas Electric LRA02234, LRA03290
Mahle MG52, MG699
Mercedes 012-154-14-02, A012-154-14-02
Sisu Diesel 836864048
IAT A12782
PIC 220-5715
SEG Automotive 0124.615.001
Voltux V2-12782
WAI 12782N
Xpart Global XAB12782

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
