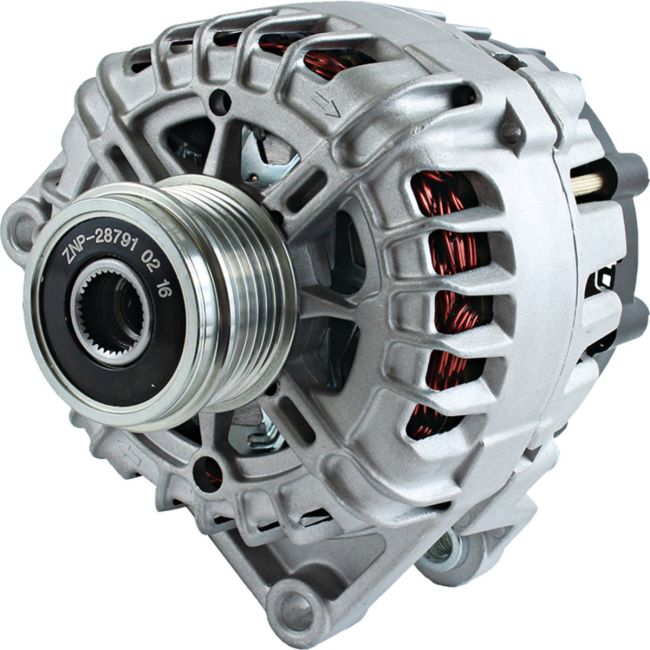

Xpart new Alternator for Chevrolet Cruze, Cruze Limited — 12V 130A Clockwise Rotation, Internal Fan Regulator, Clutch 6-Groove Pulley, Negative Polarity, Regulator Clock 1:00

CAD$0.00
No Online Payment Required
Pay Upon Delivery
(GTA Area Only)
Availability:
Out of stock
SKU
XAV11560

Description

make model engine year
Chevrolet CRUZE LIMITED 110cu in, 1.8L L4 2016
Chevrolet Cruze 1.8L L4 2016
Chevrolet CRUZE 110cu in, 1.8L L4 2011, 2012, 2013
Chevrolet CRUZE 110cu in, 1.8L L4 2011, 2012, 2013, 2014, 2015
Chevrolet CRUZE 110cu in, 1.8L L4 2014, 2015
Chevrolet CRUZE 110cu in, 1.8L L4 2014, 2015
Chevrolet Cruze 1796cc, 1.8L L4 2011, 2012, 2013, 2014
Chevrolet Cruze 1796cc, 1.8L L4 2011, 2012, 2013, 2014
Chevrolet Car Cruze L4 1.8L 1796CC 110CID 2011-2013

Specification

Lester 11560
Manufacture Valeo (Not OEM)
Family Valeo FG12
Volt 12
Amps 130
Regulator Clock 1:00
Rotation Direction Clockwise (Right)
Mount Hole ID 1 10.500mm
Mount Hole 1 Type Unthreaded
Mount Hole ID 2 M10x1.50
Mount Hole 2 Type Threaded
Mount Hole ID 3 10.500mm
Mount Hole 3 Type Unthreaded
Mount Hole ID 4 M10x1.50
Mount Hole 4 Type Threaded
Mounting Ear Thickness 0.913"
Mounting Ear Thickness 23.200mm
Mounting Ear 2 Thickness 0.748"
Mounting Ear 2 Thickness 19mm
Mounting Ear 3 Thickness 0.913"
Mounting Ear 3 Thickness 23.200mm
Mounting Ear 4 Thickness 0.748"
Mounting Ear 4 Thickness 19mm
Fan Location Internal
Regulator Location Internal
Terminal ID 2 B+
Terminal 2 Size M8x1.25
Terminal ID 3 F
Terminal 3 Size Spade
Terminal ID 4 L
Terminal 4 Size Spade
Polarity Negative
Number of Grooves 6
Pulley Type Clutch
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Plug Clock Rear View Main Mounting Ear At 6 O Clock 1
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal

Replacement Part Number

ArrowheadAVA0137
General Motors13577411, 13588298, 23247389, 95939943, 13577411
Valeo2612042A, 2616735, 2616735B, 2620305A, 849049, FG12S032, FG12S043, FG12S055, FG12S070, 2612042, 2612042A, 2616735B, 2620305A, FG12S032
Bosch AftermarketAL8851X (Reman)
Bosch Service Europe0-986-CR6-216, 0-986-UR6-216
DENSO Auto Parts211-6021
IATA11560
J&N400-40121
Lester11560
Lucas ElectricLRA03830
PIC208-909
Remy11065
Voltux849049 (OE Valeo Unit), V2-11560
Wagner420411
WAI11560N
Xpart Global XAV11560

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
