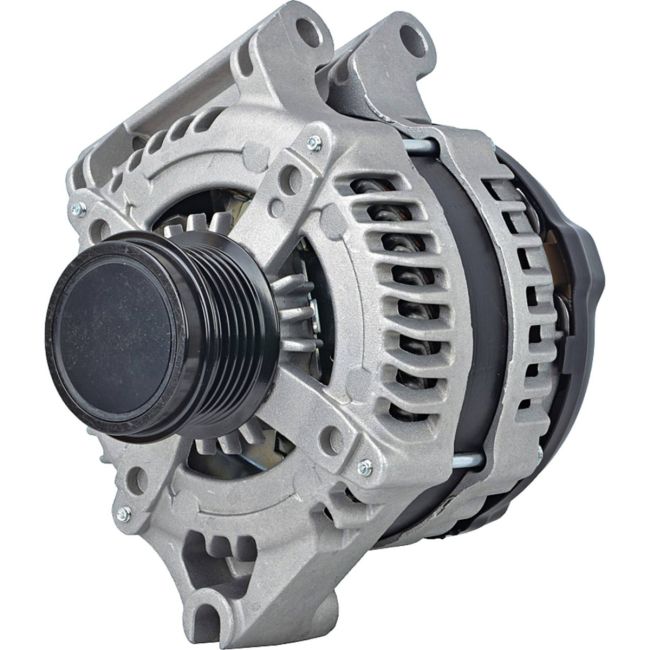

Xpart new Alternator for Chrysler 200 220cu in 3.6L V6, Jeep CHEROKEE 198cu in 3.2L V6, Jeep Cherokee 3.2L V6, Jeep Cherokee 3239cc 3.2L V6 – 12V 160A Internal Fan External

CAD$0.00
No Online Payment Required
                       Free Same Day Delivery(GTA)
                             Pay Upon Delivery(GTA)
     1 - 2 Days Ontario&Quebec
       2 - 5 Days All Over Canada
Availability:
Out of stock
SKU
XAD12886

Description

make model engine year
Chrysler 200 220cu in, 3.6L V6 2015
Chrysler 200 220cu in, 3.6L V6 2015, 2016, 2017
Chrysler 200 220cu in, 3.6L V6 2016, 2017
Chrysler Car 200 V6 3.6L 3604CC 220CID 2015-2017
Jeep CHEROKEE 198cu in, 3.2L V6 2014, 2015, 2016, 2017, 2018, 2019
Jeep CHEROKEE 198cu in, 3.2L V6 2014, 2015, 2016, 2017, 2018, 2019
Jeep Cherokee 3.2L V6 2020, 2021, 2022
Jeep Cherokee 3239cc, 3.2L V6 2014
Jeep Truck Cherokee V6 3.2L 3239CC 198CID 2014-2022

Specification

Lester 12886
Manufacture DENSO (Not OEM)
Family Denso SC (Hairpin)
Volt 12
Amps 160
Regulator Clock 12:00
Rotation Direction Clockwise (Right)
Mount Hole ID 1 9.700mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Mount Hole 3 Type Slotted
Mounting Ear Thickness 3.661"
Mounting Ear Thickness 93mm
Mounting Ear 2 Thickness 3.661"
Mounting Ear 2 Thickness 93mm
Mounting Ear 3 Thickness 3.150"
Mounting Ear 3 Thickness 80mm
Fan Location Internal
Regulator Location External
Terminal ID 2 B+
Terminal 2 Size M8x1.25
Terminal ID 3 F1
Terminal 3 Size Spade
Terminal ID 4 S
Terminal 4 Size Spade
Polarity Negative
Number of Grooves 6
Groove OD 2.043"
Groove OD 51.900mm
Pulley Type Decoupler
Pulley Outer Diameter 2.362"
Pulley Outer Diameter 60mm
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Plug Clock Rear View Main Mounting Ear At 6 O Clock 5
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type External
Stator Type Hairpin

Replacement Part Number

Arrowhead 400-52500R
Bosch Aftermarket AL6556X (Reman)
Bosch Service Europe 0-986-CR6-346, 0-986-UR6-346
Chrysler Motors 56029622AB, 56029622AC, 68271763AB
Denso 421000-0820, 421000-0821, 421000-082
Lester 12886
IAT A12886
J&N 400-52500R
PIC 290-6380
Voltux V2-12886
WAI 12886N
Xpart Global XAD12886

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.

Warranty Policy

Our Warranty Policy

Thank You for Choosing XPart Engine Electrical Products

At XPart Engine Electrical Products, our goal is 100% customer satisfaction. If you are unsatisfied for any reason and would like to return, exchange, or request a warranty claim, we are happy to assist. Please carefully read the policy below or contact our customer service team.

Returns

  • 30-day hassle-free return policy on all parts that remain in brand new condition.
  • Returns received after 30 days are subject to a 10% restocking fee.
  • If you ordered the wrong item, return it to:
    XPart Inc.
    11th Floor – 151 Yonge St
    Toronto, ON M5C 2W7

    (IMPORTANT: Print "XPART" and your full name on the return box.)
  • Email tracking number to: info@xpart.ca
  • Refunds issued to your original method of payment (Credit Card, PayPal, or E-Transfer).
  • Used, damaged, or poorly packaged items are non-refundable.
  • Return shipping is the customer’s responsibility unless the issue was caused by XPart Inc.

Exchanges

  • Exchanges accepted within 30 days of purchase.
  • Return wrong item to the same address listed above.
  • Include full name and “XPART” clearly on the box.
  • Email the tracking number to: info@xpart.ca
  • Price difference between original and replacement unit will be charged or refunded.
  • Customer is responsible for return shipping unless the exchange is due to XPart error.

Expedited Method

  • Need a replacement fast? Purchase the correct item.
  • Return the incorrect or faulty item to the address listed above.
  • Once received, a full refund will be issued for the returned item.

Warranty Replacement

All items from XPart Inc. include a one (1) year, one-time warranty covering part replacement only.

Important Warranty Conditions

  • Contact us before altering or installing the product: info@xpart.ca or call +1 844 44 XPART (97278).
  • Warranty is voided if the item is altered, abused, improperly installed, or poorly maintained.
  • Warranty is non-transferable.
  • Does NOT cover labor, towing, rentals, legal expenses, lost wages, or incidental costs.

Warranty Process

  • Return processing may take up to 5 business days from receipt.
  • After inspection, a replacement unit will be shipped.
  • Return Address:
    XPart Inc.
    11th Floor – 151 Yonge St
    Toronto, ON M5C 2W7

    (Print “XPART” and your full name on the box)
  • Email tracking to: info@xpart.ca or call +1 844 44 XPART (97278)

Contact Us

For returns, exchanges, or warranty service:

Email: info@xpart.ca
Phone: +1 844 44 XPART (97278)

About XPart Engine Electrical Products

We offer a wide selection of high-quality electrical components and replacement units for:

  • Outdoor Power Equipment
  • Agricultural Equipment
  • Construction Equipment
  • On-Highway Trucks
  • Auto & Light Trucks
  • Medium & Heavy-Duty Trucks
  • Marine Applications (Outboard and Inboard)
  • Power Sports (ATV, UTV, PWC)
  • Motorcycles
  • Small Engines
  • Hydraulic Lift Gate & Pump Motors

Available Product Lines: Starters, Alternators, Generators, Hydraulic Motors, and other mobile electrical components.

Overnight shipping is available on most products.
