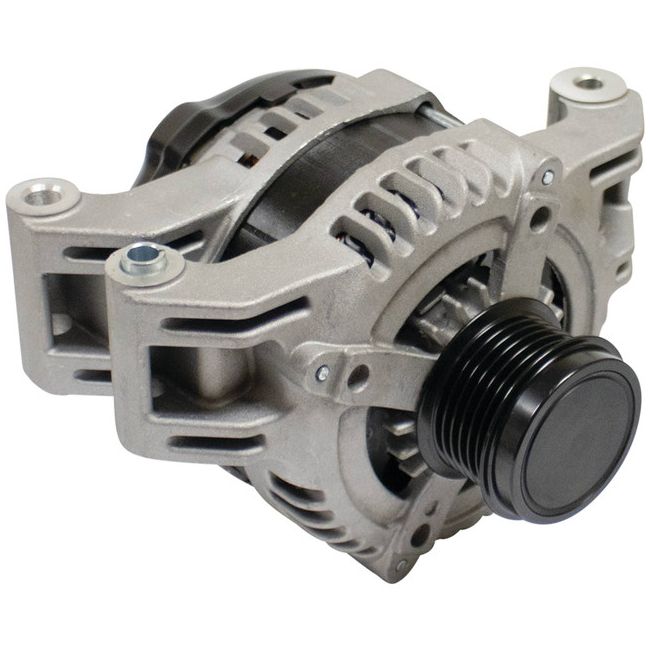

Xpart new Alternator for Chrysler 200, 300, Dodge Challenger, Charger, Durango, Fiat 500X, Jeep Cherokee, Compass, Grand Cherokee, Renegade, Ram 1500, ProMaster City — 12V 160A

CAD$0.00
No Online Payment Required
Pay Upon Delivery
(GTA Area Only)
Availability:
Out of stock
SKU
XAD11572

Description

make model engine year
Chrysler 200 144cu in, 2.4L L4 2015, 2016, 2017
Chrysler 300 220cu in, 3.6L V6 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Chrysler 300 3604cc, 3.6L V6 2011, 2012, 2013, 2014, 2015
Chrysler Car 300 V6 3.6L 3604CC 220CID 2011-2016
Dodge CHALLENGER 220cu in, 3.6L V6 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Dodge Challenger 3604cc, 3.6L V6 2011, 2012, 2013
Dodge Challenger 3604cc, 3.6L V6 2014, 2015
Dodge CHARGER 220cu in, 3.6L V6 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Dodge Charger 3604cc, 3.6L V6 2011, 2012, 2013, 2014, 2015
Dodge DURANGO 220cu in, 3.6L V6 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Dodge Durango 3604cc, 3.6L V6 2011, 2013, 2014
Dodge Car Challenger V6 3.6L 3604CC 220CID 2012-2016
Dodge Car Challenger V6 3.6L 3604CC 220CID 2011-2011
Dodge Car Charger V6 3.6L 3604CC 220CID 2011-2015
Dodge Truck Durango V6 3.6L 3604CC 220CID 2011-2016
Fiat 500X 2.4L 2016, 2017
Jeep CHEROKEE 144cu in, 2.4L L4 2014, 2015, 2016, 2017, 2018
Jeep COMPASS 144cu in, 2.4L L4 2018, 2019
Jeep GRAND CHEROKEE 220cu in, 3.6L V6 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Jeep Grand Cherokee 3604cc, 3.6L V6 2011, 2012, 2013, 2014, 2015
Jeep RENEGADE 144cu in, 2.4L L4 2015, 2016, 2017, 2018
Jeep Truck Grand Cherokee V6 3.6L 3604CC 220CID 2011-2016
Ram 1500 PICKUP 220cu in, 3.6L V6 2016, 2017, 2018
Ram PROMASTER CITY 144cu in, 2.4L L4 2015, 2016, 2017, 2018
Ram Truck 1500 V6 3.6L 3604CC 220CID 2016-2016

Specification

Lester 11572
Manufacture DENSO (Not OEM)
Family Denso SC (Hairpin)
Volt 12
Amps 160
Regulator Clock 6:00
Rotation Direction Clockwise (Right)
Mount Hole ID 1 10.600mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 9.300mm
Mount Hole 3 Type Unthreaded
Mounting Ear Thickness 2.343"
Mounting Ear Thickness 59.500mm
Mounting Ear 2 Thickness 2.264"
Mounting Ear 2 Thickness 57.500mm
Mounting Ear 3 Thickness 2.402"
Mounting Ear 3 Thickness 61mm
Fan Location Internal
Regulator Location External
Terminal ID 2 B+
Terminal 2 Size M8x1.25
Terminal ID 3 F
Terminal 3 Size Spade
Terminal ID 4 S
Terminal 4 Size Spade
Polarity Negative
Number of Grooves 6
Pulley Type Clutch
Pulley Outer Diameter 2.362"
Pulley Outer Diameter 60mm
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Plug Clock Rear View Main Mounting Ear At 6 O Clock 6
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type External
Stator Type Hairpin

Replacement Part Number

ArrowheadAND0578, VND0578
Denso421000-0750, 421000-0751, 421000-075, 421000-0752, TN4210-000750, TN421000-0750
Chrysler Motors04801779AG, 04801779AH, 04801779AI, 4801779AG, 4801779AH, 4801779AI, P04801779AG, RL801779AG
Chrysler04801779AG, 04801779AI, 4801779AG, 4801779AH, 4801779AL, P04801779AG, RL801779AG
Bosch AftermarketAL6483X (Reman)
Bosch Service Europe0-986-UR6-070
IATA11572
J&N400-52255, 400-52255R
Lester11572
Lucas ElectricLRA04198
PIC290-5609, 290-5609A, 290-5609B
VoltuxV2-11572
WAI11572, 11572N
Xpart Global XAD11572

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
