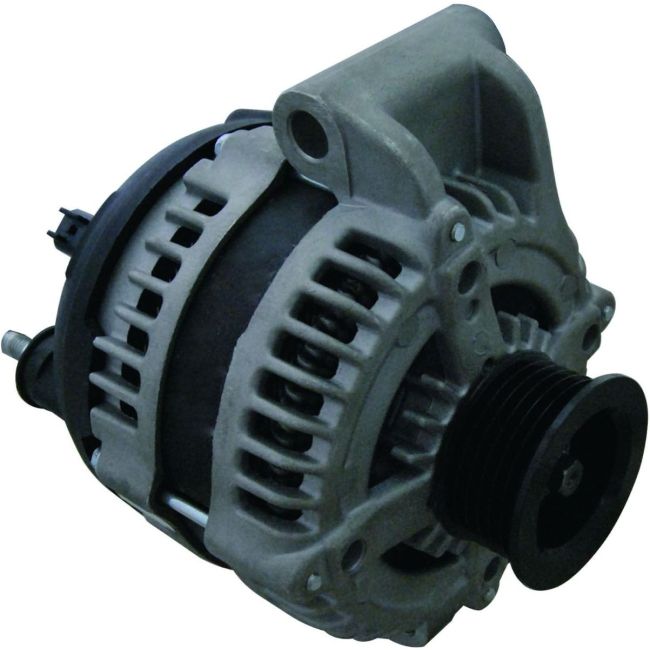

Xpart new Alternator for Chrysler 300, Dodge Challenger, Charger, Magnum — 12V, 160A, 6-Groove Solid Pulley 60mm OD, Internal Fan / External Regulator

CAD$0.00
No Online Payment Required
Pay Upon Delivery
(GTA Area Only)
Availability:
Out of stock
SKU
XAD11383

Description

make model engine year
Chrysler 300 Limited 3497cc, 3.5L V6 2009
Chrysler 300 Signature Series 3497cc, 3.5L V6 2009
Chrysler 300 Touring 3497cc, 3.5L V6 2009
Chrysler 300 167cu in, 2.7L V6 2008, 2009, 2010
Chrysler 300 215cu in, 3.5L V6 2008, 2009, 2010
Chrysler 300 2700cc, 2.7L V6 2008
Chrysler 300 2700cc, 2.7L V6 2008
Chrysler 300 2700cc, 2.7L V6 2008, 2009, 2010
Chrysler 300 2700cc, 2.7L V6 2009
Chrysler 300 2700cc, 2.7L V6 2009
Chrysler 300 2700cc, 2.7L V6 2009, 2010
Chrysler 300 2700cc, 2.7L V6 2010
Chrysler 300 345cu in, 5.7L V8 2008, 2009, 2010
Chrysler 300 3497cc, 3.5L V6 2008
Chrysler 300 3497cc, 3.5L V6 2008
Chrysler 300 3497cc, 3.5L V6 2008, 2009, 2010
Chrysler 300 3497cc, 3.5L V6 2010
Chrysler 300 3497cc, 3.5L V6 2010
Chrysler 300 3497cc, 3.5L V6 2010
Chrysler 300 370cu in, 6.1L V8 2008, 2009, 2010
Chrysler 300 392cu in, 6.4L V8 2012, 2013, 2014
Chrysler 300 5700cc, 5.7L V8 2008
Chrysler 300 5700cc, 5.7L V8 2008
Chrysler 300 5700cc, 5.7L V8 2008, 2009, 2010
Chrysler 300 5700cc, 5.7L V8 2009, 2010
Chrysler 300 5700cc, 5.7L V8 2009, 2010
Chrysler 300 5700cc, 5.7L V8 2010
Chrysler 300 6059cc, 6.1L V8 2008, 2009, 2010
Chrysler 300 6059cc, 6.1L V8 2008, 2009, 2010
Chrysler 300 6059cc, 6.1L V8 2008, 2009, 2010
Chrysler 300 6424cc, 6.4L V8 2012
Chrysler 300 6424cc, 6.4L V8 2012
Chrysler Car 300 V8 5.7L 345CID 2008-2008
Dodge CHALLENGER 215cu in, 3.5L V6 2009, 2010
Dodge CHALLENGER 345cu in, 5.7L V8 2009, 2010
Dodge Challenger 3497cc, 3.5L V6 2009, 2010
Dodge Challenger 3497cc, 3.5L V6 2009, 2010
Dodge Challenger 3497cc, 3.5L V6 2010
Dodge CHALLENGER 370cu in, 6.1L V8 2008, 2009, 2010
Dodge Challenger 5700cc, 5.7L V8 2009, 2010, 2011
Dodge Challenger 5700cc, 5.7L V8 EZC 2009, 2010
Dodge Challenger 5700cc, 5.7L V8 EZC 2009, 2010
Dodge Challenger 5700cc, 5.7L V8 EZD 2009
Dodge Challenger 5700cc, 5.7L V8 EZD 2009
Dodge Challenger 5700cc, 5.7L V8 EZH 2009, 2010
Dodge Challenger 5700cc, 5.7L V8 EZH 2010
Dodge Challenger 6059cc, 6.1L V8 2008, 2009, 2010
Dodge Challenger 6059cc, 6.1L V8 2008, 2009, 2010
Dodge Challenger 6059cc, 6.1L V8 2008, 2009, 2010
Dodge Charger R/T 5700cc, 5.7L V8 2008
Dodge Charger R/T 5700cc, 5.7L V8 2008
Dodge Charger SE 5700cc, 5.7L V8 2008
Dodge CHARGER 167cu in, 2.7L V6 2008, 2009, 2010
Dodge CHARGER 215cu in, 3.5L V6 2008, 2009, 2010
Dodge Charger 2700cc, 2.7L V6 2008
Dodge Charger 2700cc, 2.7L V6 2008
Dodge Charger 2700cc, 2.7L V6 2008, 2009, 2010
Dodge Charger 2700cc, 2.7L V6 2009
Dodge Charger 2700cc, 2.7L V6 2009
Dodge Charger 2700cc, 2.7L V6 2009, 2010
Dodge CHARGER 345cu in, 5.7L V8 2008, 2009, 2010
Dodge Charger 3497cc, 3.5L V6 2008
Dodge Charger 3497cc, 3.5L V6 2008
Dodge Charger 3497cc, 3.5L V6 2008, 2009, 2010
Dodge Charger 3497cc, 3.5L V6 2009, 2010
Dodge Charger 3497cc, 3.5L V6 2009, 2010
Dodge Charger 3518cc, 3.5L V6 2008
Dodge CHARGER 370cu in, 6.1L V8 2008, 2009, 2010
Dodge Charger 5700cc, 5.7L V8 2008, 2009, 2010, 2011
Dodge Charger 5700cc, 5.7L V8 2009, 2010
Dodge Charger 5700cc, 5.7L V8 2010
Dodge Charger 6059cc, 6.1L V8 2008, 2009, 2010
Dodge Charger 6059cc, 6.1L V8 2008, 2009, 2010
Dodge Charger 6059cc, 6.1L V8 2008, 2009, 2010
Dodge Charger 6424cc, 6.4L V8 2012, 2013
Dodge Charger 6424cc, 6.4L V8 2012, 2013
Dodge MAGNUM 167cu in, 2.7L V6 2008
Dodge MAGNUM 215cu in, 3.5L V6 2008
Dodge Magnum 2700cc, 2.7L V6 2008
Dodge Magnum 2700cc, 2.7L V6 2008
Dodge Magnum 2700cc, 2.7L V6 2008
Dodge MAGNUM 345cu in, 5.7L V8 2008
Dodge Magnum 3497cc, 3.5L V6 2008
Dodge Magnum 3497cc, 3.5L V6 2008
Dodge Magnum 3497cc, 3.5L V6 2008
Dodge MAGNUM 370cu in, 6.1L V8 2008
Dodge Magnum 5700cc, 5.7L V8 2008
Dodge Magnum 5700cc, 5.7L V8 2008
Dodge Magnum 5700cc, 5.7L V8 2008
Dodge Magnum 6059cc, 6.1L V8 2008
Dodge Magnum 6059cc, 6.1L V8 2008
Dodge Magnum 6059cc, 6.1L V8 2008
Dodge Car Charger V6 3.5L 3497CC 215CID 2009-2009
Dodge Car Magnum V8 5.7L 345CID 2008-2008

Specification

Lester 11383
Manufacture DENSO (Not OEM)
Family Denso SC (Hairpin)
Volt 12
Amps 160
Regulator Clock 1:00
Rotation Direction Clockwise (Right)
Mount Hole ID 1 10.800mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 12.600mm
Mount Hole 3 Type Unthreaded
Mounting Ear Thickness 2.697"
Mounting Ear Thickness 68.500mm
Mounting Ear 2 Thickness 2.559"
Mounting Ear 2 Thickness 65mm
Mounting Ear 3 Thickness 2.559"
Mounting Ear 3 Thickness 65mm
Fan Location Internal
Regulator Location External
Terminal ID 2 B+
Terminal 2 Size M8x1.25
Terminal ID 3 F1
Terminal 3 Size Spade
Terminal ID 4 S
Terminal 4 Size Spade
Polarity Negative
Number of Grooves 6
Pulley Type Solid
Pulley Outer Diameter 2.362"
Pulley Outer Diameter 60mm
Decoupled Or Clutch Pulley No
Fan Type Internal
Ground Type Negative
Plug Clock Rear View Main Mounting Ear At 6 O Clock 2
Plug Type 378
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type External
Stator Type Hairpin

Replacement Part Number

Arrowhead AND0476, VND0476
DENSO 210-0653, 210-1126, 421000-0620, 421000-0621, 421000-062
Chrysler Motors 4896805AD, 4896805AE
Chrysler 04896805AD, 4896805AD
Bosch Aftermarket AL6469X (Reman)
Bosch Service Europe 0-986-UR0-714
J&N Electrical Products 400-52194, 400-52194R
Lester 11383
Lucas Electric LRA04147
IAT A11383
PIC 290-5176A
Voltux V2-11383
WAI 11383
ACDelco 334-2795
Xpart Global XAD11383

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
