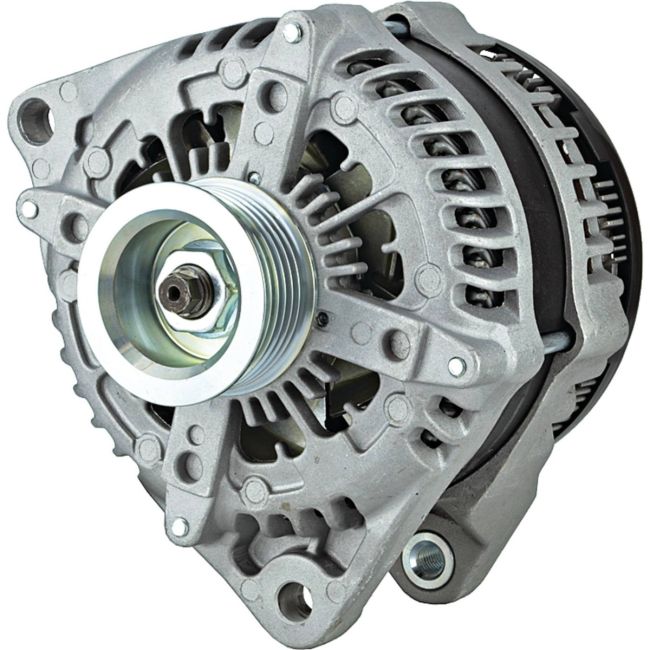

Xpart new Alternator for Ford F-150, F-Series, Lobo — 12V Clockwise, 225A, Denso SC Hairpin, 6-Groove Solid Pulley, 10mm/ M10x1.50 Mount Holes — Replaces Arrowhead AND0577

CAD$396.65
No Online Payment Required
                       Free Same Day Delivery(GTA)
                             Pay Upon Delivery(GTA)
     1 - 2 Days Ontario&Quebec
       2 - 5 Days All Over Canada
Availability:
In stock
SKU
XAD11532

Description

make model engine year
Ford F-150 302cu in, 5.0L V8 2011
Ford F-150 302cu in, 5.0L V8 2011, 2012, 2013, 2014
Ford F-150 302cu in, 5.0L V8 2013, 2014
Ford F-150 302cu in, 5.0L V8 2013, 2014
Ford F-150 4951cc, 5.0L V8 2011, 2012, 2013
Ford F-150 5000cc, 5.0L V8 2011
Ford F-Series 4951cc, 5.0L V8 2011, 2012, 2013
Ford F-Series 5000cc, 5.0L V8 2011
Ford Lobo 5.0L V8 2011, 2012
Ford Truck F-150 V8 5.0L 4951CC 302CID 2011-2014

Specification

Lester11532, 11679
ManufactureDENSO (Not OEM)
FamilyDenso SC (Hairpin), 100
Volt12
Amps225
Regulator Clock1:00
Rotation DirectionClockwise (Right)
Mount Hole ID 110mm
Mount Hole 1 TypeUnthreaded
Mount Hole 2 TypeUnthreaded
Mount Hole ID 3M10x1.50
Mount Hole 3 TypeThreaded
Mounting Ear Thickness0.614"
Mounting Ear Thickness15.600mm
Mounting Ear 2 Thickness0.622"
Mounting Ear 2 Thickness15.800mm
Mounting Ear 3 Thickness0.906"
Mounting Ear 3 Thickness23mm
Fan LocationInternal
Regulator LocationInternal
Terminal ID 2B+
Terminal 2 SizeM8x1.25
Terminal ID 3AS
Terminal 3 SizeSpade
Terminal ID 4RC
Terminal 4 SizeSpade
Terminal ID 5L
Terminal 5 SizeSpade
PolarityNegative
Number of Grooves6
Groove OD2.165"
Groove OD55mm
Pulley TypeSolid
Pulley Outer Diameter2.319"
Pulley Outer Diameter58.900mm
Plug Clock Rear View Main Mounting Ear At 6 O Clock1
Plug Type337
Pulley Belt TypeSerpentine
Pulley Groove Quantity6
Regulator TypeInternal
Stator TypeHairpin

Replacement Part Number

Arrowhead AND0577, VND0577
Denso 104210-627, 104210-6270, 104210-6660
Ford AL3T10300CA, AL3T-10300-CA, AL3Z10346C, AL3Z-10346-C, CL3T10300AA, CL3T-10300-AA, CL3Z10346A, CL3Z-10346-A, GL8647, GL8673
Bosch Aftermarket AL7783X (Reman)
Bosch Service Europe 0-986-UR6-327
IAT 210-11532 (New), 210-11532R ( Reman)
J&N 400-52404, 400-52404R
JANNCO 400-52567R
Lester 11532, 11679
Motorcraft GL-8647
PIC 290-5522
Remy 23008
Remy New 92012
Voltux V2-11532
WAI 11532N, 11532R
Xpart Global XAD11532

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
