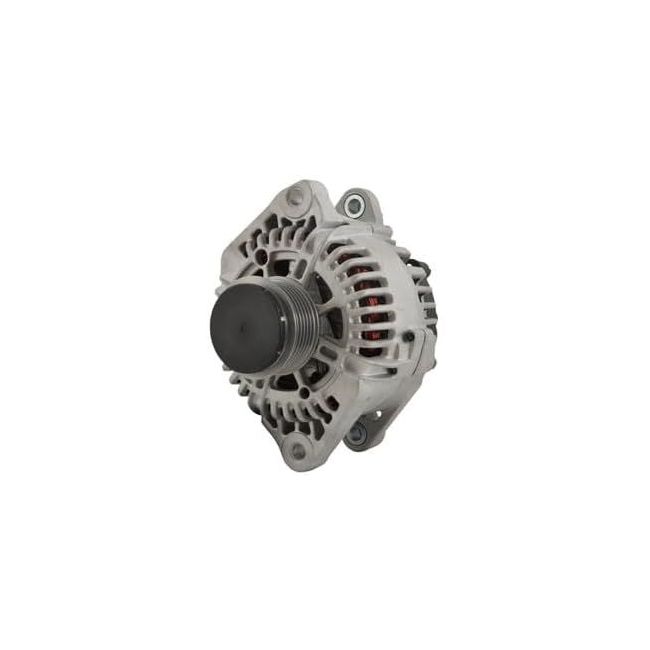

Xpart new Alternator for Hyundai Sonata/Tucson, Kia Forte/Forte Koup/Optima/Sportage — 12V, 110A, 6-Groove Clutch Pulley — Replaces Arrowhead AVA0129, Bosch AL4098X/AL4102X

CAD$0.00
No Online Payment Required
Pay Upon Delivery
(GTA Area Only)
Availability:
Out of stock
SKU
XAV11491

Description

make model engine year
Hyundai SONATA 2.4L 2011, 2012, 2013, 2014
Hyundai Sonata 2351cc, 2.4L L4 2011
Hyundai Sonata 2359cc, 2.4L L4 2011, 2012, 2013
Hyundai Tucson 1975cc, 2.0L L4 2011, 2012, 2013
Hyundai TUCSON 2.0L 2011, 2012, 2013
Hyundai TUCSON 2.4L 2010, 2011, 2012, 2013
Hyundai Tucson 2359cc, 2.4L L4 2010, 2011, 2012, 2013
Hyundai Car Sonata L4 2.4L 2359CC 2011-2013
Kia Forte Koup 1998cc, 2.0L L4 2011
Kia FORTE KOUP 2.0L 2010, 2011, 2012, 2013
Kia FORTE KOUP 2.4L 2010, 2011, 2012, 2013
Kia Forte 1998cc, 2.0L L4 2010, 2011
Kia Forte 1998cc, 2.0L L4 2010, 2011
Kia Forte 1998cc, 2.0L L4 2010, 2011, 2012, 2013
Kia Forte5 1998cc, 2.0L L4 2012, 2013
Kia OPTIMA 2.4L 2011, 2012, 2013
Kia Optima 2351cc, 2.4L L4 2011
Kia Optima 2359cc, 2.4L L4 2011, 2012, 2013
Kia SPORTAGE 2.4L 2011, 2012, 2013
Kia Sportage 2359cc, 2.4L L4 2011, 2012, 2013
Kia Car Optima L4 2.4L 2359CC 2012-2013

Specification

Lester 11491, 11492
Manufacture (Not OEM) Valeo (Not OEM)
Family TG11
Volt 12
Amps 110
Regulator Clock 4:00
Rotation Direction Clockwise (Right)
Mount Hole ID 1 10.600mm
Mount Hole 1 Type Unthreaded
Mount Hole ID 2 M10x1.25
Mount Hole 2 Type Threaded
Mount Hole ID 3 10.600mm
Mount Hole 3 Type Unthreaded
Mount Hole ID 4 M10x1.25
Mount Hole 4 Type Threaded
Mounting Ear Thickness 0.787"
Mounting Ear Thickness 20mm
Mounting Ear 2 Thickness 0.906"
Mounting Ear 2 Thickness 23mm
Mounting Ear 3 Thickness 0.787"
Mounting Ear 3 Thickness 20mm
Mounting Ear 4 Thickness 0.906"
Mounting Ear 4 Thickness 23mm
Fan Location Internal
Regulator Location Internal
Terminal ID 2 B+
Terminal 2 Size M8x1.25
Terminal ID 3 FR
Terminal 3 Size Spade
Terminal ID 4 L
Terminal 4 Size Spade
Terminal ID 5 C
Terminal 5 Size Spade
Polarity Negative
Number of Grooves 6
Groove OD 2.362"
Groove OD 60mm
Pulley Type Clutch
Pulley Outer Diameter 2.520"
Pulley Outer Diameter 64mm
Pulley Belt Type Serpentine
Plug Clock Rear View Main Mounting Ear At 6 O Clock 10
Regulator Type Internal

Replacement Part Number

ArrowheadAVA0129
Hyundai37300-2G150, 37300-2G400
Valeo2606184B, 2606446, 600878, TG11C087
BoschAL4098X, AL4102X
Bosch AftermarketAL4102N (New), AL4102X (Reman)
Bosch Service Europe0-986-CR6-121, 0-986-UN6-121, 0-986-UR6-121
J&N400-40161
Kia37300-2G150
Lester11491, 11492
Lucas ElectricLRA03445
IATA11491
PIC208-940
Remy11066
Voltux849101 (OE Valeo Unit), V2-11491 (New Aftermarket), V2-11491R (Rebuilt)
Wagner426446
WAI11491N
Xpart Global XAV11491

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
