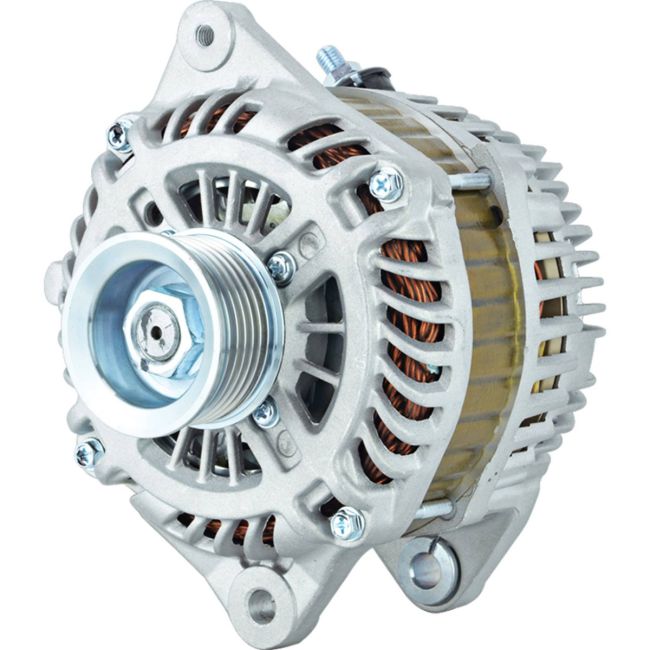

Xpart new Alternator for Infiniti JX35, QX60; Nissan Murano, Pathfinder — 12V Clockwise, 150A, 7-Groove Solid Pulley, M8x1.25/10.5mm Mount Holes — Replaces Arrowhead 400-48276

CAD$299.32
No Online Payment Required
                       Free Same Day Delivery(GTA)
                             Pay Upon Delivery(GTA)
     1 - 2 Days Ontario&Quebec
       2 - 5 Days All Over Canada
Availability:
In stock
SKU
XAM11538

Description

make model engine year
Infiniti JX35 3.5L 2013
Infiniti JX35 3498cc, 3.5L V6 2013, 2013
Infiniti QX60 3.5L 2014, 2015, 2016
Infiniti QX60 3498cc, 3.5L V6 2014
Infiniti Truck JX35 V6 3.5L 3498CC 2013-2013
Infiniti Truck QX60 V6 3.5L 3498CC 2017-2017
Infiniti Truck QX60 V6 3.5L 3498CC 2014-2016
Nissan MURANO 3.5L 2015, 2016
Nissan Murano 3500cc, 3.5L 6 cyl 2015, 2016, 2017
Nissan Pathfinder 2488cc, 2.5L L4 2014
Nissan PATHFINDER 3.5L 2013, 2014, 2015, 2016
Nissan Pathfinder 3498cc, 3.5L V6 2013, 2013, 2014
Nissan Pathfinder 3500cc, 3.5L 6 cyl 2013, 2014, 2015, 2016, 2017
Nissan Truck Murano V6 3.5L 3498CC 2017-2017
Nissan Truck Murano V6 3.5L 3498CC 2016-2016
Nissan Truck Murano V6 3.5L 3498CC 2015-2015
Nissan Truck Pathfinder V6 3.5L 3498CC 2017-2017
Nissan Truck Pathfinder V6 3.5L 3498CC 2013-2016

Specification

Lester 11538
Manufacture Mitsubishi (Not OEM)
Family A3TJ
Volt 12
Amps 150
Regulator Clock 1:00
Rotation Direction Clockwise (Right)
Mount Hole ID 1 M8x1.25
Mount Hole 1 Type Threaded
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 10.500mm
Mount Hole 3 Type Unthreaded
Mounting Ear Thickness 0.520"
Mounting Ear Thickness 13.200mm
Mounting Ear 2 Thickness 0.512"
Mounting Ear 2 Thickness 13mm
Mounting Ear 3 Thickness 0.709"
Mounting Ear 3 Thickness 18mm
Fan Location Internal
Regulator Location Internal
Terminal ID 2 B+
Terminal 2 Size M8x1.25
Terminal ID 3 C
Terminal 3 Size Spade
Terminal ID 4 S
Terminal 4 Size Space
Terminal ID 5 L
Terminal 5 Size Spade
Polarity Negative
Number of Grooves 7
Groove OD 2.165"
Groove OD 55mm
Pulley Type Solid
Pulley Outer Diameter 2.323"
Pulley Outer Diameter 59mm
Plug Clock Rear View Main Mounting Ear At 6 O Clock 1
Pulley Belt Type Serpentine
Regulator Type Internal

Replacement Part Number

Arrowhead400-48276, AMT0307, VMT0307
Nissan23100-3JA1A, 23100-3JA1ARE, 2310M-3JA1ARW
Bosch AftermarketAL2426X (Reman)
Bosch Service Europe0-986-CR6-256, 0-986-UR6-256
MitsubishiA3TJ3991, A3TJ3991ZC
Mitsubishi ElectricA003TJ3391, A003TJ3991, A003TJ3991ZC, A3TJ3991, A3TJ3991ZC
DENSO Auto Parts210-4006
IATA11538
J&N400-48252, 400-48276
Lester11538
PIC203-5324
VoltuxV2-11538
WAI11538N
Xpart Global XAM11538

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
