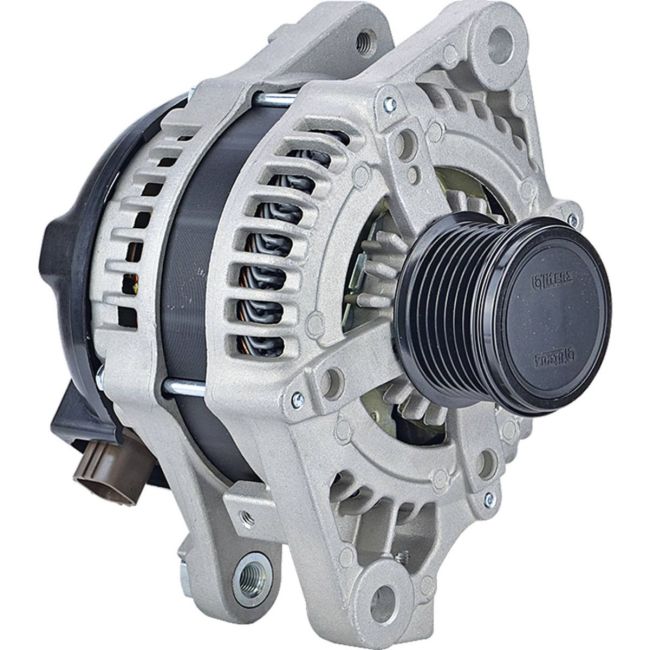

Xpart new Alternator for Lexus GS300, GS350, IS250, IS350 — 12V, 150A, 7-Groove Decoupler Pulley — Replaces Arrowhead AND0325, VND0325; Bosch AL3356X; Denso 104210-2050

CAD$0.00
No Online Payment Required
Pay Upon Delivery
(GTA Area Only)
Availability:
Out of stock
SKU
XAD11196

Description

make model engine year
Lexus GS300 2994cc, 3.0L V6 2006
Lexus GS300 2994cc, 3.0L V6 3GRFSE 2006
Lexus GS300 2997cc, 3.0L L6 2006
Lexus GS300 3.0L 2006
Lexus GS350 3.5L 2007, 2008, 2009, 2010, 2011
Lexus GS350 3456cc, 3.5L V6 2007, 2008, 2009, 2010, 2011
Lexus IS250 Hardtop 2499cc, 2.5L V6 2010
Lexus IS250 Sedan 2499cc, 2.5L V6 2010, 2011, 2012, 2013
Lexus IS250 2.5L 2006, 2007, 2008, 2009
Lexus IS250 2.5L 2010, 2011, 2012, 2013
Lexus IS250 2499cc, 2.5L V6 2006, 2007, 2008, 2009
Lexus IS250 2499cc, AWD, 2.5L V6 2014
Lexus IS350 Hardtop 3456cc, 3.5L V6 2010
Lexus IS350 Sedan 3456cc, 3.5L V6 2010, 2011, 2012, 2013
Lexus IS350 3.5L 2006, 2007, 2008, 2009
Lexus IS350 3.5L 2010, 2011, 2012, 2013
Lexus IS350 3456cc, 3.5L V6 2006, 2007, 2008, 2009
Lexus Car GS300 V6 3.0L 2994CC 2006-2006
Lexus Car GS350 V6 3.5L 3456CC 2007-2011
Lexus Car IS250 V6 2.5L 2499CC 2010-2012
Lexus Car IS250 V6 2.5L 2499CC 2006-2013
Lexus Car IS350 V6 3.5L 3456CC 2010-2012
Lexus Car IS350 V6 3.5L 3456CC 2006-2013

Specification

Lester11196
ManufactureDENSO (Not OEM)
Critical NoteMade In China
FamilyDenso SC (Hairpin), 100
Volt12
Amps150
Regulator Clock5:30
Rotation DirectionClockwise (Right)
Mount Hole ID 111mm
Mount Hole 1 TypeUnthreaded
Mount Hole ID 2M8x1.25
Mount Hole 2 TypeThreaded
Mount Hole ID 311mm
Mount Hole 3 TypeUnthreaded
Mount Hole ID 4M10x1.25
Mount Hole 4 TypeThreaded
Mounting Ear Thickness0.709"
Mounting Ear Thickness18mm
Mounting Ear 2 Thickness0.709"
Mounting Ear 2 Thickness18mm
Mounting Ear 3 Thickness0.787"
Mounting Ear 3 Thickness20mm
Mounting Ear 4 Thickness0.906"
Mounting Ear 4 Thickness23mm
Fan LocationInternal
Fan TypeInternal
Regulator LocationInternal
Regulator TypeInternal
Terminal ID 2B+
Terminal 2 SizeM6x1.00
Terminal ID 3IG
Terminal 3 SizeSpade
Terminal ID 4S
Terminal 4 SizeSpade
Terminal ID 5FR
Terminal 5 SizeSpade
Terminal ID 6L
Terminal 6 SizeSpade
PolarityNegative
Ground TypeNegative
Number of Grooves7
Pulley TypeDecoupler
Pulley Outer Diameter2.319"
Pulley Outer Diameter58.900mm
Decoupled Or Clutch PulleyYes
Pulley Belt TypeSerpentine
Pulley Groove Quantity7
Stator TypeHairpin
Plug Clock Rear View Main Mounting Ear At 6 O Clock4
Plug Type295

Replacement Part Number

Lester 11196
Arrowhead AND0325, VND0325
Bosch AL3356X
Bosch Aftermarket AL3356N (New), AL3356X (Reman)
Bosch Service Europe 0-986-CR6-016, 0-986-UR6-015, 0-986-UR6-016
Denso 104210-205,104210-2050, 104210-2051, 104210-468, 104210-4680
DENSO Auto Parts 210-0656, 210-0657
Denso Reman 9964219-205
IAT A11196
J&N Electrical Products / J&N 400-52326, 400-52326R, 400-52584, 400-52584R
JANNCO 400-52326R, 400-52584R
PIC 290-5283
RELIANCE 31594
Remy 11062, 12724
Remy New 94166
Toyota 27060-31060, 27060-31061, 27060-31062, 27060-31062-84
Voltux V2-11196 (New), V2-11196R (Rebuilt)
WAI 11196, 11196N
Xpart Global XAD11196

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
