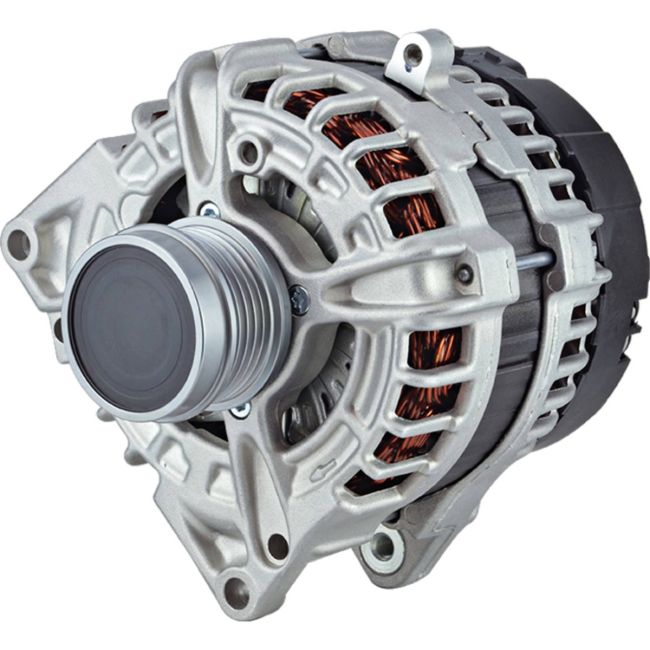

Xpart new Alternator for Mercedes-Benz CLA250, GLA250 & GLA45 AMG 2.0L – 12V 150A Internal Fan Decoupler Pulley – Arrowhead 400-24308, Bosch AL0900N / 0125711030 / 0125711055

CAD$0.00
No Online Payment Required
                       Free Same Day Delivery(GTA)
                             Pay Upon Delivery(GTA)
     1 - 2 Days Ontario&Quebec
       2 - 5 Days All Over Canada
Availability:
Out of stock
SKU
XAB20741

Description

Make Model Engine Year
Mercedes-Benz CLA250 2014, 2015
Mercedes-Benz CLA250 2.0L 2014, 2015, 2016, 2017, 2018, 2019
Mercedes-Benz GLA250 2019, 2020
Mercedes-Benz GLA250 2.0L 2015, 2016, 2017, 2018
Mercedes-Benz GLA45 AMG 2.0L 2015, 2016, 2017, 2018
Mercedes-Benz Car CLA250L4 2.0L 1991CC 2014-2019
Mercedes-Benz Truck GLA250L4 2.0L 1991CC 2017-2020
Mercedes-Benz Truck GLA250L4 2.0L 1991CC 2015-2016

Specification

Lester 20741
Manufacture Bosch (Not OEM)
Volt 12
Amps 150
Regulator Clock 12:00
Rotation Direction Clockwise (Right)
Mount Hole ID 1 8.600mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 M8x1.25
Mount Hole 3 Type Threaded
Mounting Ear Thickness 0.551"
Mounting Ear Thickness 14mm
Mounting Ear 2 Thickness 0.551"
Mounting Ear 2 Thickness 14mm
Mounting Ear 3 Thickness 0.787"
Mounting Ear 3 Thickness 20mm
Fan Location Internal
Regulator Location Internal
Terminal ID 2 B+
Terminal 2 Size M8x1.25
Terminal ID 3 LIN
Terminal 3 Size Spade
Terminal ID 4 N/C
Terminal 4 Size Spade
Polarity Negative
Number of Grooves 5
Groove OD 2.055"
Groove OD 52.200mm
Pulley Type Decoupler
Pulley Outer Diameter 2.264"
Pulley Outer Diameter 57.500mm
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Plug Clock Rear View Main Mounting Ear At 12
Pulley Belt Type Serpentine
Pulley Groove Quantity 5
Regulator Type Internal

Replacement Part Number

Arrowhead 400-24308
Bosch AL0900N, 0125711030, 0125711055, 0-125-711-030, 0-125-711-055
Bosch Aftermarket AL0900N (New), AL0900X (Reman)
Bosch Service Europe 0-986-082-160, 0-986-082-167
Delco AR185659
JANNCO 400-24308N
Lester 20741
Lucas Electric LRA03845
Mercedes 000-906-00-22, 000-906-19-03
Mercedes-Benz 000-906-00-22, 000-906-19-03, 000-906-19-03-80, A-000-906-19-03, A-000-906-19-03-80, A000-906-00-22, A000-906-19-03, A000-906-61-03-80
IAT A20741
J&N 400-24308
PIC 220-5854
Remy 11247
Remy Europe DRA1036
SEG Automotive 0125.711.055
Voltux V2-20741 (New), V2-20741R (Rebuilt)
WAI 20741N
Xpart Global XAB20741

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
