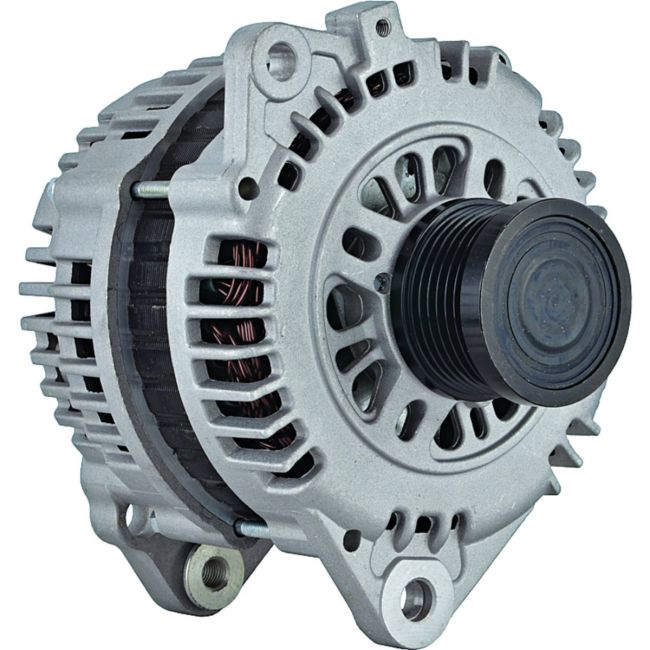

Xpart new Alternator for Nissan Frontier, X-Trail, Suzuki Equator — 12V 110A, 6-Groove Clutch Pulley — Replaces Hitachi LR1110-724, Lester 11119, Nissan 23100EA000

CAD$0.00
No Online Payment Required
Pay Upon Delivery
(GTA Area Only)
Availability:
Out of stock
SKU
XAH11119

Description

Make Model Engine Year
NissanFrontier2.5L L42019
NissanFRONTIER2.5L2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
NissanFrontier2500cc, 2.5L L42005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
NissanFrontier2500cc, 4WD, 2.5L L42015
NissanX-Trail2008
Nissan TruckFrontierL4 2.5L 2488CC 152CID2007–2019
Nissan TruckFrontierL4 2.5L 2488CC 152CID2006
Nissan TruckFrontierL4 2.5L 2488CC 152CID2006
Nissan TruckFrontierL4 2.5L 2488CC 152CID2005–2006
Nissan TruckFrontierL4 2.5L 2488CC 152CID2005
SuzukiEQUATOR2.5L2009, 2010, 2011, 2012
SuzukiEquator2500cc, 2.5L L42009, 2010, 2011, 2012
Suzuki TruckEquatorL4 2.5L 2488CC 152CID2009–2012

Specification

Lester 11119
Manufacture Hitachi (Not OEM)
Volt 12
Amps 110
Regulator Clock 8:00
Rotation Direction Clockwise (Right)
Mount Hole ID 1 10.400mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 M10x1.25
Mount Hole 3 Type Threaded
Mounting Ear Thickness 0.504"
Mounting Ear Thickness 12.800mm
Mounting Ear 2 Thickness 0.516"
Mounting Ear 2 Thickness 13.100mm
Mounting Ear 3 Thickness 0.768"
Mounting Ear 3 Thickness 19.500mm
Fan Location Internal
Regulator Location Internal
Terminal ID 2 B+
Terminal 2 Size M8x1.25
Terminal ID 3 C
Terminal 3 Size Spade
Terminal ID 4 S
Terminal 4 Size Spade
Terminal ID 5 L
Terminal 5 Size Spade
Polarity Negative
Number of Grooves 6
Groove OD 2.075"
Groove OD 52.700mm
Pulley Type Clutch
Pulley Outer Diameter 2.220"
Pulley Outer Diameter 56.400mm
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal

Replacement Part Number

Arrowhead AHI0116
Hitachi LR1110-724, LR1110-724B, LR1110-724C
Hitachi Automotive ALR0017, LR1110-724, LR1110-724B, LR1110-724BR, LR1110-724C, LR1110-724CAM
J&N Electrical Products 400-44118
Lester 11119
Nissan 23100EA000, 23100-EA000, 23100EA00A, 23100-EA00A, 23100EA00B, 23100-EA00B, 2310M-EA00BRW
Suzuki 31400-82Z00, 31400-82Z01
Bosch Aftermarket AL2437X (Reman)
Bosch Service Europe 0-986-UR6-484
DENSO Auto Parts 210-3163
IAT 200-11119 (Aftermarket)
PIC 204-4054
RELIANCE 41208
Voltux LR1110-724 (OE Hitachi Unit), V2-11119
WAI 11119N
Xpart Global XAH11119

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
