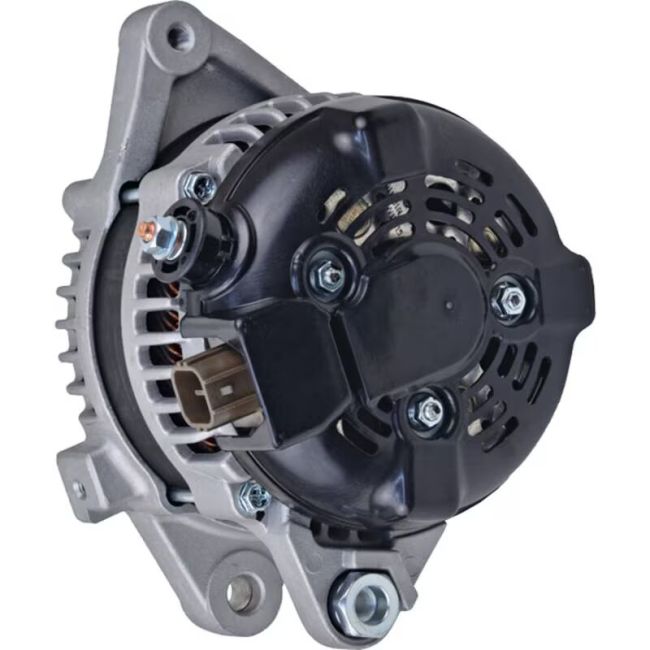

Xpart new Alternator for Pontiac Vibe, Toyota Corolla, Matrix — 1.8L L4 Engines — 12V, 100A, 6-Groove Clutch Pulley, Internal Fan / Internal Regulator — Mount Holes M8/M10,

CAD$0.00
No Online Payment Required
Pay Upon Delivery
(GTA Area Only)
Availability:
Out of stock
SKU
XAD11385

Description

make model engine year
Pontiac VIBE 1.8L 2009
Pontiac Vibe 1795cc, 1.8L L4 2009
Pontiac Car Vibe L4 1.8L 1798CC 110CID 2009-2010
Toyota COROLLA 1.8L 2009, 2010
Toyota Corolla 1794cc, 1.8L L4 2009, 2010, 2011
Toyota MATRIX 1.8L 2009, 2010
Toyota Matrix 1795cc, 1.8L L4 2009, 2010, 2011
Toyota Car Corolla L4 1.8L 1798CC 110CID 2011-2011
Toyota Car Corolla L4 1.8L 1798CC 110CID 2009-2010
Toyota Car Matrix L4 1.8L 1798CC 110CID 2009-2010

Specification

Lester 11385
Manufacture DENSO (Not OEM)
Family Denso SC (Hairpin)
Volt 12
Amps 100
Regulator Clock 8:00
Rotation Direction Clockwise (Right)
Mount Hole ID 1 M8x1.25
Mount Hole 1 Type Threaded
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 M10x1.25
Mount Hole 3 Type Threaded
Fan Location Internal
Regulator Location Internal
Terminal ID 2 B+
Terminal 2 Size M6x1.00
Polarity Negative
Number of Grooves 6
Pulley Type Clutch
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Ground Type Negative
Plug Clock Rear View Main Mounting Ear At 6 O Clock 8
Plug Type 295
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Stator Type Hairpin

Replacement Part Number

Arrowhead AND0470
Bosch Aftermarket AL3376X (Reman)
Bosch Service Europe 0-986-CR6-112, 0-986-UR6-112
DENSO 104210-5490, 104210-5491, 104210-549, 104210-5492
DENSO Auto Parts 210-0731
General Motors 88975507, 19205245
Toyota 27060-0T040, 27060-0T041, 27060-0T041-84
J&N Electrical Products 400-52238, 400-52238R
Lester 11385
IAT A11385
PIC 290-5015
Voltux V2-11385, V2-11385R
WAI 11385N
Xpart Global XAD11385

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
