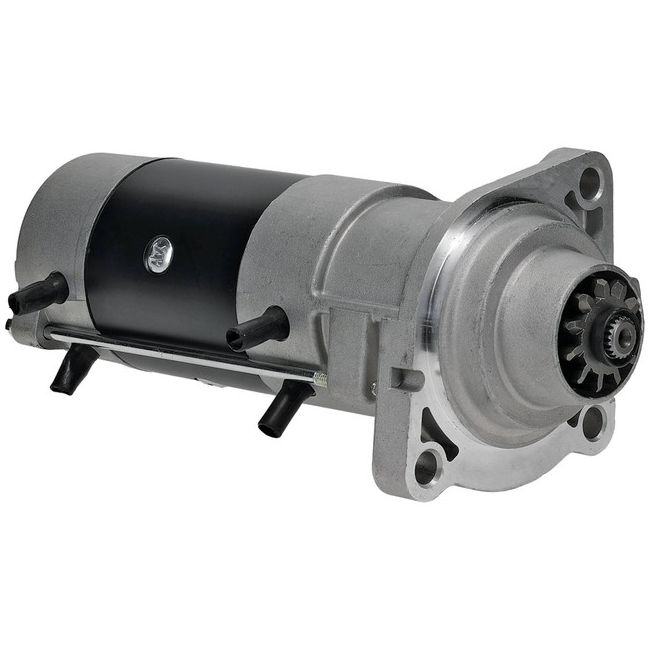

Xpart New Starter for Bobcat 530, 5600, 5610, 751G, 753, 763, 773, A300, A770, S100-S850, T110-T870, V417 – 12V, 2.7kW, 11-Tooth, Planetary Gear, CW Rotation – Replaces Valeo 418901

CAD$275.68
No Online Payment Required
                       Free Same Day Delivery(GTA)
                             Pay Upon Delivery(GTA)
     1 - 2 Days Ontario&Quebec
       2 - 5 Days All Over Canada
Availability:
In stock
SKU
XSV18486

Description

make model engine years
Bobcat 530
Bobcat 5600 V2003, Diesel
Bobcat 5600 V2003, Diesel
Bobcat 5600 V2203, Diesel
Bobcat 5600 V2203, Diesel
Bobcat 5600 V2607DIT, Diesel
Bobcat 5600 V2607DIT, Diesel
Bobcat 5610 V2003, Diesel
Bobcat 5610 V2003, Diesel
Bobcat 5610 V2607DIT, Diesel
Bobcat 5610 V2607DIT, Diesel
Bobcat 751G V1903EB , Diesel
Bobcat 753
Bobcat 763 V2203EB , Diesel
Bobcat 773
Bobcat A300 BF4M1011F, Diesel 0
Bobcat A300 V3300DI , Diesel 0
Bobcat A300 V3800DTI , Diesel
Bobcat A770 V3800DTI , Diesel
Bobcat S100
Bobcat S130 V2203 / V2403 0
Bobcat S130 V2203DI
Bobcat S150 V2203 / V2403
Bobcat S160 V2003 / V2203
Bobcat S160 V2607 , Diesel 0
Bobcat S175
Bobcat S185 V2003 / V2203 0
Bobcat S185 V2203TEB, Diesel
Bobcat S185 V2607, Diesel 0
Bobcat S205 V2403 , Diesel
Bobcat S205 V2607, Diesel 0
Bobcat S220 V3300DI , Diesel
Bobcat S220 V3800, Diesel 0
Bobcat S250 V3300DI , Diesel
Bobcat S250 V3800 , Diesel 0
Bobcat S300 V3300T , Diesel
Bobcat S300 V3800, Diesel 0
Bobcat S330
Bobcat S510 V2203MDI, Diesel 0
Bobcat S510 V2403MDI, Diesel 0
Bobcat S550 V2607DIT , Diesel 0
Bobcat S570 V2607DIT , Diesel
Bobcat S590 V2607DIT , Diesel
Bobcat S630
Bobcat S650 V3307 , Diesel
Bobcat S750
Bobcat S770 V3800 , Diesel
Bobcat S850 V3800 , Diesel
Bobcat T110 V2403MDI , Diesel
Bobcat T140 V2203 / V2403
Bobcat T180 V2003 / V2403
Bobcat T190 V2003 / V2403 0
Bobcat T190 V2607DIT, Diesel 0
Bobcat T2250 V3300DIT , Diesel
Bobcat T2250 V3300DIT , Diesel
Bobcat T250 V3300DI , Diesel
Bobcat T300 V3300DI , Diesel
Bobcat T320 V3800DI-T , Diesel
Bobcat T550 V2607DIT , Diesel
Bobcat T590 V2607DIT , Diesel
Bobcat T630
Bobcat T650 V3307DIT , Diesel
Bobcat T750 V3800DI-T , Diesel
Bobcat T770 V3800DI-T , Diesel
Bobcat T870 Diesel
Bobcat V417
Bobcat Articulated Loaders A770 0-0
Bobcat Skid Steer Loader 751G 0-0
Bobcat Skid Steer Loader S100 2007-2013
Bobcat Skid Steer Loader S185 0-0
Bobcat Skid Steer Loader S250 0-0
Bobcat Skid Steer Loader S250 0-0
Bobcat Skid Steer Loader S300 0-0
Bobcat Skid Steer Loader S330 0-0
Bobcat Skid Steer Loaders 753 Loader 1999-2003
Bobcat Skid Steer Loaders 753G 1999-1999
Bobcat Skid Steer Loaders 763 1999-2003
Bobcat Skid Steer Loaders 763F 1999-1999
Bobcat Skid Steer Loaders 763G 1999-1999
Bobcat Skid Steer Loaders 763HF 1999-1999
Bobcat Skid Steer Loaders 763HG 1999-2000
Bobcat Skid Steer Loaders 773 1999-2002
Bobcat Skid Steer Loaders S130 2002-2013
Bobcat Skid Steer Loaders S150 2003-2013
Bobcat Skid Steer Loaders S160 2003-2013
Bobcat Skid Steer Loaders S175 2001-2013
Bobcat Skid Steer Loaders S205 2004-2013
Bobcat Skid Steer Loaders S220 2004-2010
Bobcat Skid Steer Loaders S220 Turbo 2004-2014
Bobcat Skid Steer Loaders S510 2013-2013
Bobcat Skid Steer Loaders S530 2013-2013
Bobcat Skid Steer Loaders S550 2013-2013
Bobcat Skid Steer Loaders S570 2013-2013
Bobcat Skid Steer Loaders S590 2013-2013
Bobcat Skid Steer Loaders S630 2009-2013
Bobcat Skid Steer Loaders S650 2009-2013
Bobcat Skid Steer Loaders S750 2011-2013
Bobcat Skid Steer Loaders S770 2011-2013
Bobcat Skid Steer Loaders S850 2011-2013
Bobcat Skid Steer Loaders T300 Turbo 2002-2012
Bobcat Telescopic Handler T2250 2008-2013

Specification

Lester 18486
Manufacture Valeo (Not OEM)
FamilyTM00
Critical Note 4-Terminal Solenoid
Volt 12
Power 2.700 kw
HP 3.621
Rotation DirectionClockwise (Right)
Electric Starter Type Planetary Gear Reduction (PLGR)
Number of Teeth 11
Gear OD 1.583"
Gear OD 40.200mm
Mount Hole ID 1 11.700mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 11.700mm
Mount Hole 3 Type Unthreaded

Replacement Part Number

Bobcat 6676957, 6685190, DSL6676957
Lester 18486
Lucas Electric LRS03889
Mahle MS962
Valeo 418901, TM000A28901, 000A28901
Arrowhead SPR0010
IAT 660-18486, S28901
J&N 410-40014
Jlg BC6685190
Lucas Electrical LES0216
PIC 108-303
Wagner 418901
WAI 18486N, 2-2306-MD
Xpart Global XSV18486

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
