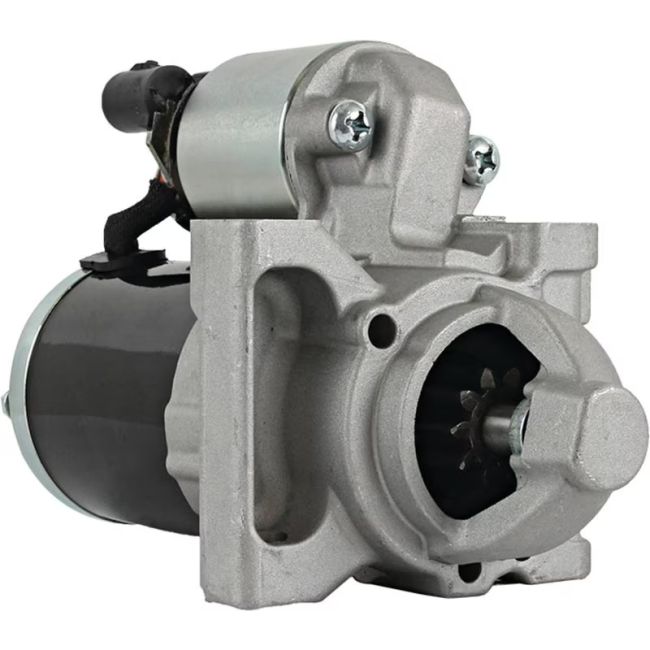

Xpart New Starter for Cadillac CTS, Chevrolet Camaro Corvette Express Savana – 12V Clockwise PMGR Starter Motor, 1.4KW, 1.877HP, 10-Tooth Pinion, 27.5mm Gear OD, Mitsubishi Design

CAD$245.97
No Online Payment Required
                      Free Same Day Delivery(GTA)
                           Pay Upon Delivery(GTA)
1 - 2 Days Ontario&Quebec
2 - 5 Days All Over Canada
Availability:
In stock
SKU
XSM16029

Description

Make Model Engine Year
Cadillac CTS 376cu in, 6.2L V8 2016, 2017, 2018, 2019
Cadillac CT5 V8 6.2L 6162CC 376CID 2022-2024
Cadillac Escalade V8 6.2L 6162CC 376CID 2023-2024
Cadillac Escalade ESV V8 6.2L 6162CC 376CID 2024-2024
Chevrolet CAMARO 378cu in, 6.2L V8 2016, 2017, 2018, 2019
Chevrolet CAMARO 427cu in, 7.0L V8 2014, 2015
Chevrolet Camaro V8 6.2L 6162CC 376CID 2020-2024
Chevrolet CORVETTE 378cu in, 6.2L V8 2014, 2015, 2016, 2017, 2018, 2019
Chevrolet Corvette 6200cc, 6.2L V8 2014
Chevrolet Express 2500 6.6L V8 2021, 2022
Chevrolet Express 2500 V8 6.6L 6571CC 401CID 2021-2024
Chevrolet Express 3500 6.6L V8 2021, 2022
Chevrolet Express 3500 V8 6.6L 6571CC 401CID 2021-2024
Chevrolet Express 4500 V8 6.6L 6571CC 401CID 2021-2024
Chevrolet LCF 3500 6.6L V8 2021, 2022, 2023
Chevrolet LCF 3500HG V8 6.6L 6571CC 401CID 2024-2024
Chevrolet Silverado 1500 V8 5.3L 5328CC 325CID 2020-2022
Chevrolet Silverado 1500 LTD V8 5.3L 5328CC 325CID 2022-2022
Chevrolet Silverado 2500 HD V8 6.6L 6571CC 401CID 2023-2023
Chevrolet Silverado 3500 HD V8 6.6L 6571CC 401CID 2023-2023
GMC Canyon L4 2.7L 2720CC 166CID 2023-2023
GMC Savana 2500 6.6L V8 2021, 2022
GMC Savana 2500 V8 6.6L 6571CC 401CID 2021-2024
GMC Savana 3500 6.6L V8 2021, 2022
GMC Savana 3500 V8 6.6L 6571CC 401CID 2021-2024
GMC Savana 4500 V8 6.6L 6571CC 401CID 2021-2024
GMC Sierra 1500 V8 5.3L 5328CC 325CID 2019-2021
GMC Sierra 1500 Limited V8 5.3L 5328CC 325CID 2022-2022
GMC Sierra 2500 HD V8 6.6L 6571CC 401CID 2023-2023
GMC Sierra 3500 HD V8 6.6L 6571CC 401CID 2023-2023

Specification

Lester 10890, 16029, 19134
Voltage 12
Power 1.400 kW
Horsepower 1.877
Condition New
Starter Rotation Clockwise (Right)
Starter Type Permanent Magnet Gear Reduction (PMGR)
Tooth Quantity 10
Gear OD 1.083"
Gear OD 27.500mm
Length 166.500 mm
Length 6.555"
Mount Hole ID 1 10.200mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Registry OD 2.421"
Registry OD 61.500mm
Mounting Ear Distance 1 2.862"
Mounting Ear Distance 1 72.700mm
Manufacture Delco (Not OEM)
Mounting Type Pad

Replacement Part Number

Arrowhead SMT0457
Bosch Aftermarket SR8503X (Reman)
General Motors 12619241, 12652772, 12662757, 12691976
Chevrolet 12724366, 13534990
J&N Electrical Products 410-48314
Lester 10890, 16029, 19134
Mitsubishi 12160041604248BC, M0T23671, M0T23672, 11171523014817MC, 13153151083248BC
Mitsubishi Electric 13552631, 183117860, A002TV3281BC
PIC 103-5370
Voltux V1-16029
Xpart Global XSM16029

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.

Warranty Policy

Our Warranty Policy

Thank You for Choosing XPart Engine Electrical Products

At XPart Engine Electrical Products, our goal is 100% customer satisfaction. If you are unsatisfied for any reason and would like to return, exchange, or request a warranty claim, we are happy to assist. Please carefully read the policy below or contact our customer service team.

Returns

  • 30-day hassle-free return policy on all parts that remain in brand new condition.
  • Returns received after 30 days are subject to a 10% restocking fee.
  • If you ordered the wrong item, return it to:
    XPart Inc.
    11th Floor – 151 Yonge St
    Toronto, ON M5C 2W7

    (IMPORTANT: Print "XPART" and your full name on the return box.)
  • Email tracking number to: info@xpart.ca
  • Refunds issued to your original method of payment (Credit Card, PayPal, or E-Transfer).
  • Used, damaged, or poorly packaged items are non-refundable.
  • Return shipping is the customer’s responsibility unless the issue was caused by XPart Inc.

Exchanges

  • Exchanges accepted within 30 days of purchase.
  • Return wrong item to the same address listed above.
  • Include full name and “XPART” clearly on the box.
  • Email the tracking number to: info@xpart.ca
  • Price difference between original and replacement unit will be charged or refunded.
  • Customer is responsible for return shipping unless the exchange is due to XPart error.

Expedited Method

  • Need a replacement fast? Purchase the correct item.
  • Return the incorrect or faulty item to the address listed above.
  • Once received, a full refund will be issued for the returned item.

Warranty Replacement

All items from XPart Inc. include a one (1) year, one-time warranty covering part replacement only.

Important Warranty Conditions

  • Contact us before altering or installing the product: info@xpart.ca or call +1 844 44 XPART (97278).
  • Warranty is voided if the item is altered, abused, improperly installed, or poorly maintained.
  • Warranty is non-transferable.
  • Does NOT cover labor, towing, rentals, legal expenses, lost wages, or incidental costs.

Warranty Process

  • Return processing may take up to 5 business days from receipt.
  • After inspection, a replacement unit will be shipped.
  • Return Address:
    XPart Inc.
    11th Floor – 151 Yonge St
    Toronto, ON M5C 2W7

    (Print “XPART” and your full name on the box)
  • Email tracking to: info@xpart.ca or call +1 844 44 XPART (97278)

Contact Us

For returns, exchanges, or warranty service:

Email: info@xpart.ca
Phone: +1 844 44 XPART (97278)

About XPart Engine Electrical Products

We offer a wide selection of high-quality electrical components and replacement units for:

  • Outdoor Power Equipment
  • Agricultural Equipment
  • Construction Equipment
  • On-Highway Trucks
  • Auto & Light Trucks
  • Medium & Heavy-Duty Trucks
  • Marine Applications (Outboard and Inboard)
  • Power Sports (ATV, UTV, PWC)
  • Motorcycles
  • Small Engines
  • Hydraulic Lift Gate & Pump Motors

Available Product Lines: Starters, Alternators, Generators, Hydraulic Motors, and other mobile electrical components.

Overnight shipping is available on most products.
