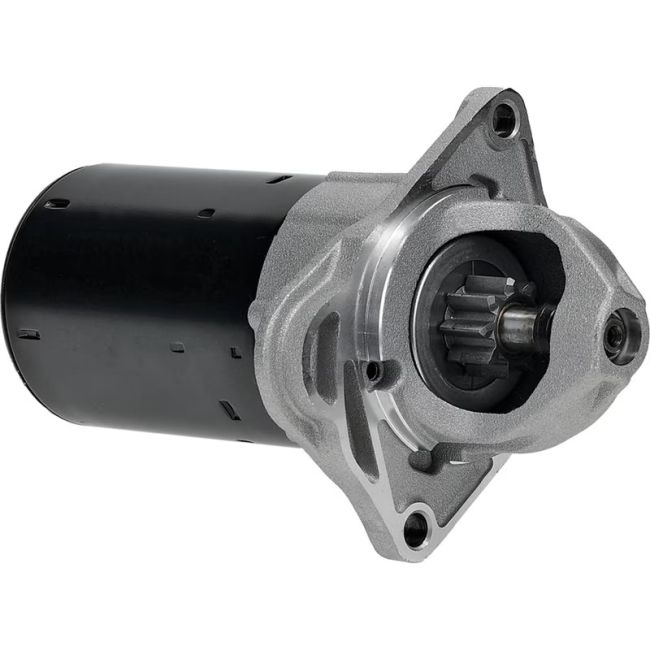

Xpart New Starter for Chevrolet Cruze Sonic Trax, Buick Encore – 12V Clockwise PLGR Starter Motor, 1.1KW, 1.475HP, 9-Tooth Pinion, 24.9mm Gear OD, 145mm Length, M8 B+ Stud, 68mm Registry OD

CAD$131.00
No Online Payment Required
                       Free Same Day Delivery(GTA)
                         Pay Upon Delivery(GTA)
1 - 2 Days Ontario&Quebec
2 - 5 Days All Over Canada
Availability:
Out of stock
SKU
XSB19112

Description

Make Model Engine Year
Buick Encore 1364cc, 1.4L L4 2013
Buick Encore 1364cc, 1.4L L4 2013, 2014
Buick ENCORE 83cu in, 1.4L L4 2013, 2014, 2015
Buick ENCORE 83cu in, 1.4L L4 2013, 2014, 2015, 2016
Buick ENCORE 83cu in, 1.4L L4 2016
Buick Truck Encore L4 1.4L 1364CC 83CID 2013-2013
Chevrolet CRUZE LIMITED 83cu in, 1.4L L4 2016
Chevrolet CRUZE LIMITED 83cu in, 1.4L L4 2016
Chevrolet Cruze 1364cc, 1.4L L4 2011, 2012, 2013, 2014
Chevrolet CRUZE 83cu in, 1.4L L4 2011, 2012, 2013, 2014, 2015
Chevrolet CRUZE 83cu in, 1.4L L4 2011, 2012, 2013, 2014, 2015
Chevrolet CRUZE 83cu in, 1.4L L4 2012, 2013, 2014, 2015
Chevrolet CRUZE 85cu in, 1.4L L4 2016
Chevrolet Car Cruze L4 1.4L 1364CC 83CID 2011-2013
Chevrolet Sonic 1.4L L4 2020
Chevrolet Sonic 1364cc, 1.4L L4 2012, 2013, 2014
Chevrolet SONIC 83cu in, 1.4L L4 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Chevrolet SONIC 83cu in, 1.4L L4 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Chevrolet Car Sonic L4 1.4L 1364CC 83CID 2012-2013
Chevrolet Trax 1.4L L4 2020, 2021
Chevrolet Trax 1364cc, 1.4L L4 2013, 2014
Chevrolet TRAX 83cu in, 1.4L L4 2013, 2014, 2015, 2016
Chevrolet TRAX 83cu in, 1.4L L4 2013, 2014, 2015, 2016, 2017, 2018, 2019

Specification

Lester 19112, 33354
Voltage 12
Power 1.100 kW
Horsepower 1.475
Condition New
Rotation Direction Clockwise (Right)
Starter Type Planetary Gear Reduction (PLGR)
Number of Teeth 9
Gear OD 0.980"
Gear OD 24.900mm
Length 145 mm
Length 5.709"
Mount Hole ID 1 8.500mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Registry OD 2.677"
Registry OD 68mm
Mounting Ear Distance 1 104.600mm
Mounting Ear Distance 1 4.118"
Family M046
Mounting Type Flange
Case Grounding G

Replacement Part Number

Arrowhead SBO0350
Bosch 0001107492, 0001107493, 0001107521, 0001107522, 0001157024, 0001157028, 0986020870, 0986020877, SR8502N, SR8502X
Bosch Aftermarket SR8502N (New), SR8502X (Reman)
Bosch Service Europe 0-986-020-870, 0-986-020-877
Bosch (Other) 0-001-107-521, 0-001-107-522, 0-001-192-008, 0-001-192-009, 0-001-192-068, 0-001-192-069, 0-001-192-080, 0-001-192-086, 0-001-192-087
Delco 9000781, DRS0611, DRS3638
Fiat 71739864
General Motors 1202217, 55566800, 55576954, 55578921, 55595603
IAT 570-19112, S19112R
J&N 410-24292
Lester 19112, 33354
Lucas Electric LRE02502, LRS02494, LRS02502
Mahle IS0580
Marelli 943251439, 943251613, MSR421, MSR459
Mitsubishi M000T39172ZC, M0T39172ZC
Mitsubishi Electric M000T39171ZC
Opel 1202217
PIC 120-6406
Remy Europe DRS0611
SEG Automotive 0001.192.086
Vauxhall 55578921
Voltux V1-19112, V1-19112R
WAI 19112N
Xpart Global XSB19112

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
