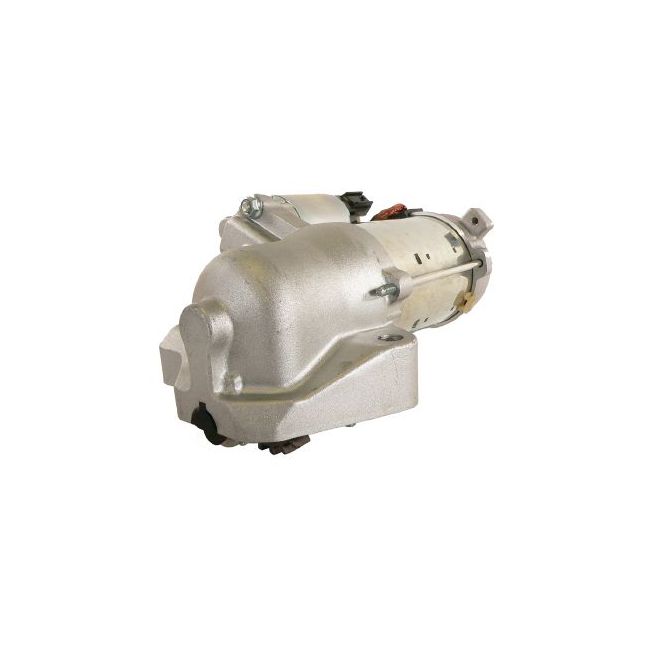

Xpart New Starter Motor for Acura RL,TL, Honda Accord, Crosstour, Odyssey, Pilot, Ridgeline — 12V (PMGR), Counter-Clockwise Rotation, 19-Tooth High-Torque Gear

CAD$247.82
No Online Payment Required
                       Free Same Day Delivery(GTA)
                             Pay Upon Delivery(GTA)
     1 - 2 Days Ontario&Quebec
       2 - 5 Days All Over Canada
Availability:
In stock
SKU
XSD19014

Description

Make Model Engine Year
Acura RL 2009, 2010
Acura RL 3.7L 2009, 2010
Acura RL 3664cc, 3.7L V6 2009, 2009, 2010, 2010
Acura TL SH-AWD 3664cc, 3.7L V6 2010
Acura TL 2009, 2010, 2011
Acura TL 3.5L 2009, 2010, 2011
Acura TL 3471cc, 3.5L V6 2009, 2009, 2010, 2010, 2011
Acura TL 3664cc, 3.7L V6 2009
Acura TL 3664cc, 3.7L V6 2010
Acura TL 3664cc, 3.7L V6 J37A4 2010, 2011
Acura Car RL V6 3.7L 3664CC 2009-2010
Acura Car TL V6 3.5L 3471CC 2009-2011
Acura Car TL V6 3.7L 3664CC 2009-2009
Honda Accord Crosstour 2010, 2011
Honda Accord Crosstour 3471cc, 3.5L V6 2010, 2011
Honda Accord 2008, 2009, 2010, 2011, 2012
Honda ACCORD 3.5L 2008, 2009, 2010, 2011, 2012
Honda Accord 3471cc, 3.5L V6 2008, 2009, 2010, 2011
Honda Accord 3471cc, 3.5L V6 J35Z2 2008, 2009, 2010, 2011, 2012
Honda Crosstour 2012
Honda CROSSTOUR 3.5L 2010, 2011, 2012
Honda Crosstour 3471cc, 3.5L V6 2012
Honda Odyssey EX 3471cc, 3.5L V6 J35Z8 2011
Honda Odyssey EX-L 3471cc, 3.5L V6 J35Z8 2011
Honda Odyssey LX 3471cc, 3.5L V6 J35Z8 2011
Honda Odyssey 2008, 2010
Honda ODYSSEY 3.5L 2008, 2009
Honda ODYSSEY 3.5L 2010
Honda Odyssey 3471cc, 3.5L V6 J35A7 2008
Honda Odyssey 3471cc, 3.5L V6 J35A7 2010
Honda Odyssey 3474cc, 3.5L V6 2010
Honda Odyssey 3474cc, 3.5L V6 VCM 2008, 2009
Honda Pilot 2015
Honda Pilot 3471cc, 3.5L V6 2009, 2010, 2011, 2012, 2013, 2014
Honda Ridgeline 2009, 2010, 2011, 2012, 2013, 2014
Honda RIDGELINE 3.5L 2009, 2010, 2011, 2012, 2013, 2014
Honda Ridgeline 3471cc, 3.5L V6 2009, 2010, 2011, 2012, 2013, 2014
Honda Car Accord V6 3.5L 3471CC 2008-2012
Honda Car Accord Crosstour V6 3.5L 3471CC 2010-2011
Honda Car Crosstour V6 3.5L 3471CC 2012-2012
Honda Truck Pilot V6 3.5L 3471CC 2015-2015
Honda Truck Ridgeline V6 3.5L 3471CC 2009-2014
Honda Van Odyssey V6 3.5L 3471CC 2008-2010

Specification

Lester 19014
Manufacture DENSO (Not OEM)
Family R5.0
Case Grounding G
Volt 12
Condition New
Rotation Direction Counterclockwise (Left)
Electric Starter Type Permanent Magnet Gear Reduction (PMGR)
Number of Teeth 19
Gear OD 2.094"
Gear OD 53.200mm
Mount Hole ID 1 11mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Start Stop System Compatible TRUE
Mounting Bolt Hole Quantity 2
Mounting Type SIDE

Replacement Part Number

ACDelco 336-2095
Acura 31200R70A51
Arrowhead SND0658
Bosch Aftermarket SR1353X (Reman)
Bosch Service Europe 0-986-CR1-639
Denso 280-0406, 428000-5380, 428000-685, 428000-538
DENSO Auto Parts 280-0403
Honda 31200R70A51, 31200-R70-A51, 31200R70A51RM, 31200-R70-A51RM, 06312-R70-505, 06312-R70-505RM, DU4V3
IAT S19014
J&N Electrical Products 410-52328
Lester 19014
PIC 190-6251
WAI 19014N
Xpart Global XSD19014

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
