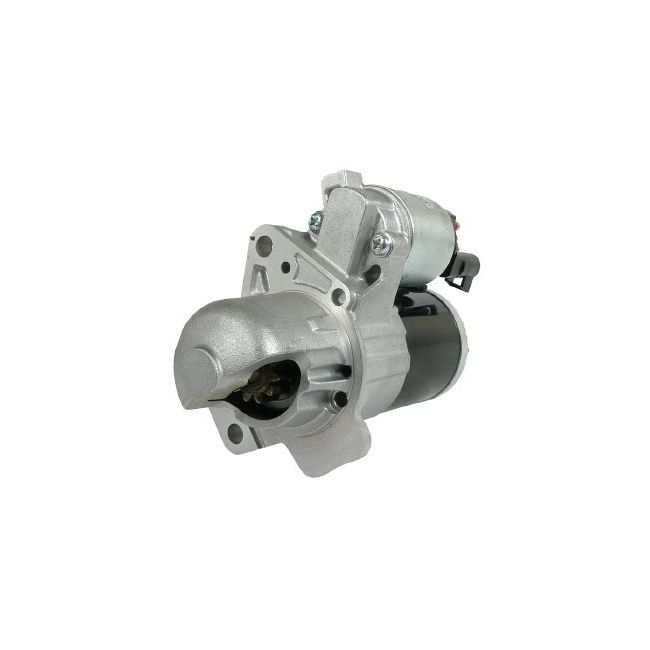

Xpart New Starter Motor for Buick, Cadillac, Chevrolet, GMC, Pontiac, Saturn, Suzuki — 12V Clockwise Permanent Magnet Gear Reduction (PMGR), 12-Tooth, 1.4 kW (1.877 HP), Gear OD 33mm

CAD$139.21
No Online Payment Required
                       Free Same Day Delivery(GTA)
                             Pay Upon Delivery(GTA)
     1 - 2 Days Ontario&Quebec
       2 - 5 Days All Over Canada
Availability:
In stock
SKU
XSM17986

Description

Make Model Engine Year
Buick ALLURE 182cu in, 3.0L V6 2010
Buick ALLURE 217cu in, 3.6L V6 2006, 2007, 2008, 2010
Buick Allure 3600cc, 3.6L V6 2006
Buick Allure 3600cc, 3.6L V6 2006
Buick Enclave 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Buick ENCLAVE 217cu in, 3.6L V6 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Buick LACROSSE 145cu in, 2.4L L4 2010, 2012, 2013
Buick LACROSSE 182cu in, 3.0L V6 2010
Buick LACROSSE 217cu in, 3.6L V6 2006, 2007, 2008, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Buick LaCrosse 3600cc, 3.6L V6 2006
Buick LaCrosse 3600cc, 3.6L V6 2006
Buick RENDEZVOUS 217cu in, 3.6L V6 2005, 2006
Buick Rendezvous 3600cc, 3.6L V6 2006
Buick Rendezvous 3600cc, 3.6L V6 2006
Buick Car LaCrosse V6 3.6L 3564CC 217CID 2006-2006
Buick Truck Rendezvous V6 3.6L 3564CC 217CID 2006-2006
Cadillac CTS 170cu in, 2.8L V6 2006
Cadillac CTS 217cu in, 3.6L V6 2006
Cadillac CTS 2792cc, 2.8L V6 2006
Cadillac CTS 3600cc, 3.6L V6 2006
Cadillac SRX 2012, 2013, 2015
Cadillac SRX 182cu in, 3.0L V6 2010, 2011
Cadillac SRX 217cu in, 3.6L V6 2006, 2007, 2012, 2013, 2014, 2015, 2016
Cadillac SRX 3600cc, 3.6L V6 2006
Cadillac SRX 3600cc, 3.6L V6 2006
Cadillac SRX 3600cc, 3.6L V6 2006
Cadillac SRX 3600cc, 3.6L V6 2006
Cadillac SRX 3600cc, 3.6L V6 2006
Cadillac STS 217cu in, 3.6L V6 2006, 2007
Cadillac STS 3600cc, 3.6L V6 2006
Cadillac STS 3600cc, 3.6L V6 2006
Cadillac STS 3600cc, 3.6L V6 2006
Cadillac STS 3600cc, 3.6L V6 2006
Cadillac STS 3600cc, 3.6L V6 2006
Cadillac XTS 2013, 2014
Cadillac XTS 217cu in, 3.6L V6 2013, 2015, 2016, 2017, 2018, 2019
Cadillac XTS 3600cc, 3.6L V6 2014
Cadillac Car CTS V6 2.8L 2792CC 170CID 2006-2006
Cadillac Car CTS V6 3.6L 3564CC 217CID 2006-2006
Cadillac Car STS V6 3.6L 3564CC 217CID 2006-2006
Cadillac Truck SRX V6 3.6L 3564CC 217CID 2006-2006
Chevrolet Captiva Sport 3.0L V6 2011
Chevrolet Captiva Sport 3.6L V6 2008, 2009
Chevrolet CAPTIVA SPORT 182cu in, 3.0L V6 2012
Chevrolet COLORADO 217cu in, 3.6L V6 2015, 2016
Chevrolet EQUINOX 182cu in, 3.0L V6 2010, 2011, 2012
Chevrolet EQUINOX 217cu in, 3.6L V6 2008, 2009, 2013, 2014, 2015, 2016, 2017
Chevrolet IMPALA 217cu in, 3.6L V6 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Chevrolet Impala 2012, 2013, 2020
Chevrolet Impala Limited 2014
Chevrolet IMPALA LIMITED 217cu in, 3.6L V6 2014, 2015, 2016
Chevrolet MALIBU 217cu in, 3.6L V6 2008, 2009, 2010, 2011, 2012
Chevrolet Acadia 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Chevrolet Traverse 2009, 2010, 2011, 2012, 2013, 2014
Chevrolet TRAVERSE 217cu in, 3.6L V6 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
GMC Acadia 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
GMC ACADIA 217cu in, 3.6L V6 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
GMC ACADIA LIMITED 217cu in, 3.6L V6 2017
GMC CANYON 217cu in, 3.6L V6 2015, 2016
GMC TERRAIN 182cu in, 3.0L V6 2010, 2011, 2012
GMC TERRAIN 217cu in, 3.6L V6 2013, 2014, 2015, 2016, 2017
Pontiac G6 217cu in, 3.6L V6 2007, 2008, 2009
Pontiac TORRENT 217cu in, 3.6L V6 2008, 2009
Saturn AURA 217cu in, 3.6L V6 2007, 2008, 2009
Saturn Outlook 2007, 2008, 2009, 2010
Saturn OUTLOOK 217cu in, 3.6L V6 2007, 2008, 2009, 2010
Saturn VUE 217cu in, 3.6L V6 2008, 2009
Saturn Vue 3600cc, 3.6L V6 2010
Suzuki XL-7 3564cc, 3.6L V6 2007, 2008, 2009

Specification

Lester 17986
Family M0T3
Manufacture Mitsubishi (Not OEM)
Volt 12
Power 1.400 kw
HP 1.877
Condition New
Rotation Direction Clockwise (Right)
Electric Starter Type Permanent Magnet Gear Reduction (PMGR)
Number of Teeth 12
Gear OD 1.299"
Gear OD 33mm
Mount Hole ID 1 11mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 12.400mm
Mount Hole 3 Type Unthreaded
Design PMGR
Tooth Quantity 12

Replacement Part Number

Arrowhead M0T35872, SMT0307
Bosch Aftermarket SR8660X (Reman)
Bosch Service Europe 0-986-UR1-762
DENSO Auto Parts 280-4346
General Motors 12588493, 12598756
IAT 590-17997
J&N Electrical Products 410-48100
Lester 17986
Mitsubishi M0T35871, M0T35872
Mitsubishi Electric M000T35871, M000T35872, M0T35871, M0T35872
PIC 103-5076
Remy 16078
WAI 17986N, 2-2695-MI, M0T35872
Xpart Global XSM17986

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
