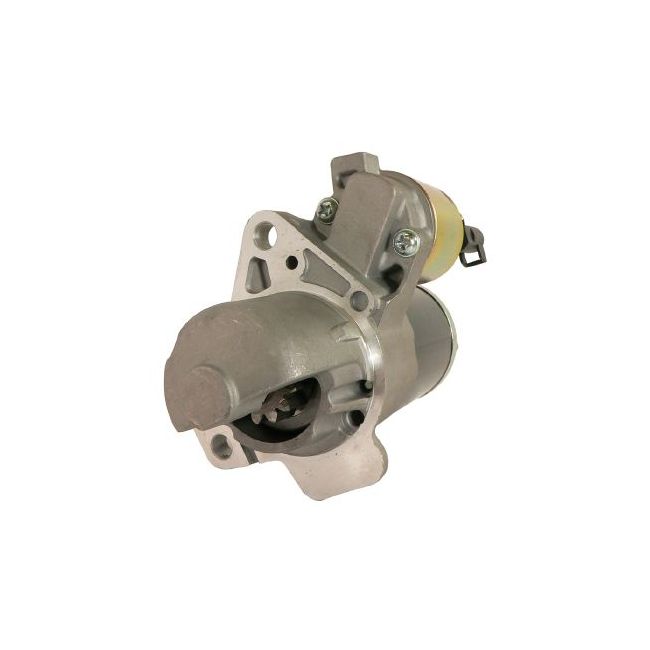

Xpart New Starter Motor for Cadillac, Chevrolet — 12V Clockwise PMGR, 12-Tooth, 1.4 kW (1.877 HP), Gear OD 31.6mm, Unthreaded Mounts

CAD$145.31
No Online Payment Required
                       Free Same Day Delivery(GTA)
                             Pay Upon Delivery(GTA)
     1 - 2 Days Ontario&Quebec
       2 - 5 Days All Over Canada
Availability:
In stock
SKU
XSM17996

Description

Make Model Engine Year
Cadillac ATS 217cu in, 3.6L V6 2013, 2014
Cadillac ATS 3600cc, 3.6L V6 2013
Cadillac CTS 2005, 2006, 2007, 2008
Cadillac CTS 2005, 2006, 2007, 2008
Cadillac CTS 170cu in, 2.8L V6 2005, 2006, 2007
Cadillac CTS 170cu in, 2.8L V6 2005, 2006, 2007
Cadillac CTS 182cu in, 3.0L V6 2010, 2011
Cadillac CTS 182cu in, 3.0L V6 2010, 2011, 2012, 2013, 2014
Cadillac CTS 217cu in, 3.6L V6 2006, 2007, 2008, 2009, 2010, 2011
Cadillac CTS 217cu in, 3.6L V6 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Cadillac CTS 2792cc, 2.8L V6 2005, 2006, 2007
Cadillac CTS 2792cc, 2.8L V6 2006
Cadillac CTS 2792cc, 2.8L V6 2006, 2007
Cadillac CTS 3000cc, 3.0L V6 2010, 2011
Cadillac CTS 3000cc, 3.0L V6 2010, 2011, 2012
Cadillac CTS 3000cc, 3.0L V6 2012, 2013, 2014
Cadillac CTS 3564cc, 3.6L V6 2011, 2012
Cadillac CTS 3600cc, 3.6L V6 2006
Cadillac CTS 3600cc, 3.6L V6 2006, 2007
Cadillac CTS 3600cc, 3.6L V6 2006, 2007, 2008, 2009, 2010, 2011
Cadillac CTS 3600cc, 3.6L V6 2006, 2007, 2009, 2010, 2011, 2012
Cadillac CTS 3600cc, 3.6L V6 2012
Cadillac SRX 217cu in, 3.6L V6 2006, 2007, 2008, 2009
Cadillac SRX 217cu in, 3.6L V6 2006, 2007, 2008, 2009
Cadillac SRX 3600cc, 3.6L V6 2006
Cadillac SRX 3600cc, 3.6L V6 2006, 2007
Cadillac SRX 3600cc, 3.6L V6 2006, 2007, 2008, 2009
Cadillac SRX 3600cc, 3.6L V6 2006, 2007, 2008, 2009
Cadillac STS 2011
Cadillac STS 2011
Cadillac STS 217cu in, 3.6L V6 2006, 2007, 2008, 2009, 2010, 2011
Cadillac STS 217cu in, 3.6L V6 2006, 2007, 2008, 2009, 2010, 2011
Cadillac STS 3600cc, 3.6L V6 2006
Cadillac STS 3600cc, 3.6L V6 2006, 2007
Cadillac STS 3600cc, 3.6L V6 2006, 2007, 2008, 2009, 2010, 2011
Cadillac STS 3600cc, 3.6L V6 2006, 2008, 2009, 2010
Cadillac Car CTS V6 2.8L 2792CC 170CID 2006-2006
Cadillac Car CTS V6 2.8L 2792CC 170CID 2007-2007
Cadillac Car CTS V6 3.6L 3564CC 217CID 2006-2006
Cadillac Car CTS V6 3.6L 3564CC 217CID 2007-2007
Cadillac Car STS V6 3.6L 3564CC 217CID 2006-2006
Cadillac Truck SRX V6 3.6L 3564CC 217CID 2006-2006
Cadillac Truck SRX V6 3.6L 3564CC 217CID 2007-2007
Chevrolet CAMARO 217cu in, 3.6L V6 2010, 2011
Chevrolet CAMARO 217cu in, 3.6L V6 2010, 2011, 2012, 2013, 2014
Chevrolet Camaro 3564cc, 3.6L V6 2011, 2012
Chevrolet Camaro 3600cc, 3.6L V6 2010, 2011, 2012
Chevrolet Camaro 3600cc, 3.6L V6 2010, 2011, 2012
Chevrolet Camaro 3600cc, 3.6L V6 2013, 2014

Specification

Lester 17996
Family M0T3
Manufacture Mitsubishi (Not OEM)
Case Grounding G
Volt 12
Power 1.400 kw
HP 1.877
Condition New
Rotation Direction Clockwise (Right)
Electric Starter Type Permanent Magnet Gear Reduction (PMGR)
Number of Teeth 12
Gear OD 1.244"
Gear OD 31.600mm
Mount Hole ID 1 11mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Mount Hole ID 3 12.500mm
Mount Hole 3 Type Unthreaded
Mounting Bolt Hole Quantity 3
Mounting Type Flange
Tooth Quantity 12

Replacement Part Number

Arrowhead M0T35874, M0T35875, SMT0331
Bosch Aftermarket SR8645X (Reman)
Bosch Service Europe 0-986-UR1-534
DENSO Auto Parts 280-4296
General Motors 12608653, 12610857
IAT S17996
J&N Electrical Products 410-48140
Lester 17996
Mitsubishi M0T35874, M0T35875
Mitsubishi Electric M0T35874
PIC 103-5079
Remy 16109
WAI 17996N, M0T35874
Xpart Global XSM17996

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.
