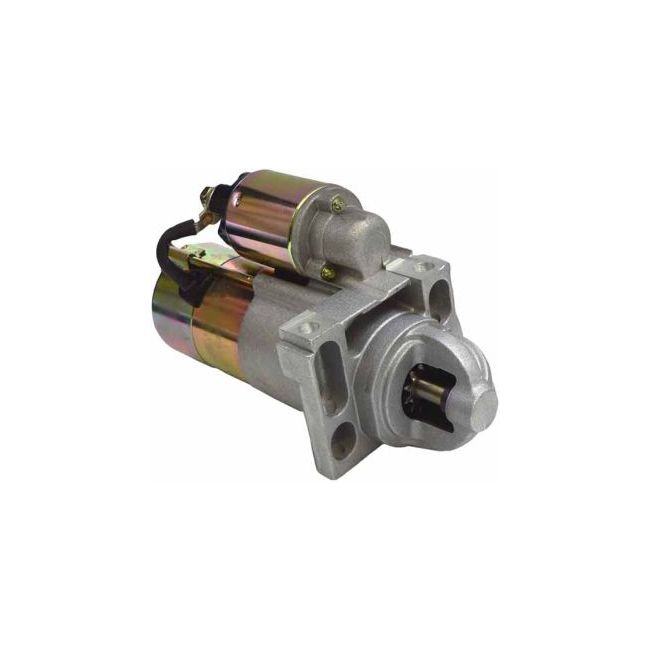

main product photo
Loading...
Xpart New Starter Motor for Buick Roadmaster; Cadillac Brougham; Chevrolet Astro, Blazer — 12V Clockwise PMGR, 1.5kW / 2.0HP, 11-Tooth, 29.5mm Gear OD

Xpart New Starter Motor for Buick Roadmaster; Cadillac Brougham; Chevrolet Astro, Blazer — 12V Clockwise PMGR, 1.5kW / 2.0HP, 11-Tooth, 29.5mm Gear OD

Xpart New Starter Motor for Ford Super Duty, F-Series, and E-Series Trucks — 12V Clockwise OSGR, 12-Tooth, 36.5mm Gear OD — Replaces Arrowhead SFD0122, J&N 410-14080

Xpart New Starter Motor for Ford Super Duty, F-Series, and E-Series Trucks — 12V Clockwise OSGR, 12-Tooth, 36.5mm Gear OD — Replaces Arrowhead SFD0122, J&N 410-14080

Xpart New Starter Motor for Cadillac Escalade; Chevrolet Avalanche, Express, Silverado; GMC; Hummer; Isuzu; Pontiac — 12V Clockwise PMGR, 1.7kW / 2.28HP, 11-Tooth, 28.9mm Gear OD

Be the first to review this product
CAD$177.29
No Online Payment Required
                       Free Same Day Delivery(GTA)
                             Pay Upon Delivery(GTA)
     1 - 2 Days Ontario&Quebec
       2 - 5 Days All Over Canada
Availability:
In stock
SKU
XSD6492
Amazon Logo
  • American Express
  • Visa
  • MasterCard
  • Discover

Description

Make Model Engine Year
Cadillac ESCALADE ESV 364cu in, 6.0L V8 2003, 2004, 2005
Cadillac Escalade ESV 5967cc, 6.0L V8 2003, 2004, 2005
Cadillac ESCALADE EXT 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Cadillac Escalade EXT 5967cc, 6.0L V8 2002, 2003, 2004, 2005
Cadillac ESCALADE 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Cadillac Escalade 5967cc, 6.0L V8 2002, 2003, 2004, 2005
Cadillac Escalade 5967cc, 6.0L V8 2002, 2003, 2004, 2005
Chevrolet Avalanche 2500 8100cc, 8.1L V8 2003, 2004, 2005
Chevrolet C Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet CAMARO 350cu in, 5.7L V8 1998, 1999, 2000, 2001
Chevrolet CAMARO 350cu in, 5.7L V8 2002
Chevrolet Camaro 5700cc, 5.7L V8 1998, 1999, 2000, 2001
Chevrolet Camaro 5736cc, 5.7L V8 1998, 1999, 2000, 2001
Chevrolet CORVETTE 350cu in, 5.7L V8 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Chevrolet Corvette 5700cc, 5.7L V8 1997, 1998, 1999, 2000, 2001
Chevrolet Corvette 5700cc, 5.7L V8 2001
Chevrolet Corvette 5736cc, 5.7L V8 1997, 1998, 1999, 2000, 2001
Chevrolet Express 2500 5967cc, 6.0L V8 2003, 2004, 2005, 2006, 2007
Chevrolet Express 2500 5967cc, RWD, 6.0L V8 2003, 2004, 2005
Chevrolet Express 3500 4800cc, 4.8L V8 2005
Chevrolet Express 3500 5967cc, 6.0L V8 2003, 2004, 2005, 2006, 2007
Chevrolet EXPRESS VANS 364cu in, 6.0L V8 2003, 2004, 2005
Chevrolet K Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet R Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet SILVERADO 1500 HD 364cu in, 6.0L V8 2001
Chevrolet SILVERADO 1500 HD 364cu in, 6.0L V8 2002, 2003, 2005
Chevrolet Silverado 1500 HD 5967cc, 6.0L V8 2001
Chevrolet Silverado 1500 HD 5967cc, 6.0L V8 2001, 2002, 2003, 2005
Chevrolet SILVERADO 1500 364cu in, 6.0L V8 2003, 2004, 2005
Chevrolet Silverado 1500 5967cc, 6.0L V8 2003, 2004, 2005
Chevrolet SILVERADO 2500 HD 364cu in, 6.0L V8 2001
Chevrolet SILVERADO 2500 HD 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Chevrolet SILVERADO 2500 HD 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Chevrolet Silverado 2500 HD 5967cc, 4WD, 6.0L V8 , Gas 2003
Chevrolet Silverado 2500 HD 5967cc, 6.0L V8 2001
Chevrolet Silverado 2500 HD 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
Chevrolet SILVERADO 2500 364cu in, 6.0L V8 1999
Chevrolet SILVERADO 2500 364cu in, 6.0L V8 1999
Chevrolet SILVERADO 2500 364cu in, 6.0L V8 2000, 2001
Chevrolet SILVERADO 2500 364cu in, 6.0L V8 2002
Chevrolet SILVERADO 2500 364cu in, 6.0L V8 2002, 2003, 2004
Chevrolet Silverado 2500 5967cc, 6.0L V8 1999, 2000, 2001
Chevrolet Silverado 2500 5967cc, 6.0L V8 1999, 2000, 2001, 2002, 2003, 2004
Chevrolet Silverado 2500 5967cc, 6.0L V8, Gas 2001
Chevrolet SILVERADO 3500 364cu in, 6.0L V8 2001
Chevrolet SILVERADO 3500 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Chevrolet SILVERADO 3500 364cu in, 6.0L V8 2004, 2005
Chevrolet Silverado 3500 5967cc, 6.0L V8 2001
Chevrolet Silverado 3500 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
Chevrolet Silverado 3500 5967cc, 6.0L V8, Gas 2001
Chevrolet SSR 364cu in, 6.0L V8 2005
Chevrolet SSR 5300cc, 5.3L V8 2003, 2004
Chevrolet SSR 6000cc, 6.0L V8 2005
Chevrolet Suburban 2500 5967cc, 6.0L V8 2000, 2001
Chevrolet Suburban 2500 5967cc, 6.0L V8 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet SUBURBAN 364cu in, 6.0L V8 2000, 2001
Chevrolet SUBURBAN 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Chevrolet Suburban 6000cc, 6L V8 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet V Series Pickups 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet Truck Silverado 2500 HD V8 6.0L 5967CC 364CID 2003-2003
Chevrolet Truck SSR V8 5.3L 5328CC 325CID 2003-2004
Chevrolet Truck SSR V8 6.0L 5967CC 364CID 2005-2005
Chevrolet/GMC W3500 Tiltmaster 364cu in, 6.0L V8, Gas 2003
Chevrolet/GMC W3500 Tiltmaster 364cu in, 6.0L V8, Gas 2004, 2005
Chevrolet/GMC W4500 Tiltmaster 364cu in, 6.0L V8, Gas 2003
Chevrolet/GMC W4500 Tiltmaster 364cu in, 6.0L V8, Gas 2004, 2005
GMC C Series 6000cc, 6L V8 1999, 2000, 2001, 2004, 2005
GMC K Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
GMC R Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
GMC Savana 2500 5967cc, 6.0L V8 2003, 2004, 2005, 2006, 2007
GMC Savana 2500 5967cc, RWD, 6.0L V8 2003, 2004, 2005
GMC Savana 3500 2005
GMC Savana 3500 5967cc, 6.0L V8 2003, 2004, 2005, 2006, 2007
GMC SAVANA VANS 364cu in, 6.0L V8 2003, 2004, 2005
GMC SIERRA 1500 HD 364cu in, 6.0L V8 2001
GMC SIERRA 1500 HD 364cu in, 6.0L V8 2002, 2003, 2005
GMC Sierra 1500 HD 5967cc, 6.0L V8 2001
GMC Sierra 1500 HD 5967cc, 6.0L V8 2001, 2002, 2003, 2005
GMC Sierra 1500 5967cc, 6.0L V8 2001
GMC Sierra 1500 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
GMC SIERRA 2500 HD 364cu in, 6.0L V8 2001
GMC SIERRA 2500 HD 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC SIERRA 2500 HD 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC Sierra 2500 HD 5967cc, 4WD, 6.0L V8 , Gas 2003
GMC Sierra 2500 HD 5967cc, 6.0L V8 2001
GMC Sierra 2500 HD 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
GMC SIERRA 2500 364cu in, 6.0L V8 1999
GMC SIERRA 2500 364cu in, 6.0L V8 1999
GMC SIERRA 2500 364cu in, 6.0L V8 2000, 2001
GMC SIERRA 2500 364cu in, 6.0L V8 2002
GMC SIERRA 2500 364cu in, 6.0L V8 2002, 2003, 2004
GMC Sierra 2500 5967cc, 6.0L V8 1999, 2000, 2001
GMC Sierra 2500 5967cc, 6.0L V8 1999, 2000, 2001, 2002, 2003, 2004
GMC Sierra 2500 5967cc, RWD, 6.0L V8 , Gas 2002
GMC SIERRA 3500 364cu in, 6.0L V8 2001
GMC SIERRA 3500 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC SIERRA 3500 364cu in, 6.0L V8 2004, 2005
GMC Sierra 3500 5967cc, 6.0L V8 2001
GMC Sierra 3500 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
GMC Sierra 3500 5967cc, 6.0L V8, Gas 2001
GMC Sierra C3 5967cc, 6.0L V8 2001
GMC SIERRA DENALI 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC V Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
GMC Yukon Denali 5967cc, 6.0L V8 2001
GMC Yukon Denali 5967cc, 6.0L V8 2001
GMC Yukon XL 1500 Denali 5967cc, 6.0L V8 2001
GMC Yukon XL 1500 Denali 5967cc, 6.0L V8 2001
GMC Yukon XL 1500 5967cc, 6.0L V8 2001
GMC Yukon XL 1500 5967cc, 6.0L V8 2002, 2003, 2004, 2005
GMC Yukon XL 2500 5967cc, 6.0L V8 2000, 2001
GMC Yukon XL 2500 5967cc, 6.0L V8 2000, 2001, 2002, 2003, 2004, 2005
GMC YUKON XL 364cu in, 6.0L V8 2000, 2001
GMC YUKON XL 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC Yukon XL 6000cc, 6L V8 2000, 2001, 2002, 2003, 2004, 2005
GMC YUKON 364cu in, 6.0L V8 2001
GMC YUKON 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC Yukon 5967cc, 6.0L V8 2001
GMC Yukon 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
Hummer H2 364cu in, 6.0L V8 2003, 2004, 2005
Hummer H2 5967cc, 6.0L V8 2003, 2004, 2005
Hummer H2 5967cc, 6.0L V8 2005
Isuzu NPR 364cu in, 6.0L V8 2012
Isuzu NPR-HD 364cu in, 6.0L V8 2008
Isuzu Medium/Heavy Truck NPR V8 6.0L 5967CC 364CID 2003-2005
Pontiac FIREBIRD 350cu in, 5.7L V8 1998, 1999, 2000, 2001, 2002
Pontiac Firebird 5700cc, 5.7L V8 1998, 1999, 2000, 2001
Pontiac Firebird 5733cc, 5.7L V8 1998, 1999, 2000, 2001

Specification

Lester6492
ManufactureDelco (Not OEM)
FamilyDelco PG260M, PG260L
Case GroundingG
Critical NoteThis is a 6492 Style Unit With (2) Long Mounting Bolt Hole@ When Replacing 6482 Style Units (1) 451-68004 Bolt Is Required
Volt12
Power1.700 kw
HP2.280
ConditionNew
Rotation DirectionClockwise (Right)
Electric Starter TypePermanent Magnet Gear Reduction (PMGR)
Number of Teeth11
Gear OD1.138"
Gear OD28.900mm
Mount Hole ID 110mm
Mount Hole 1 TypeUnthreaded
Mount Hole 2 TypeUnthreaded
Power Rating1.6
DesignPMGR
Mounting Bolt Hole Quantity2
Mounting Hardware IncludedNo
Mounting Shims IncludedNo
Mounting TypePad
Nose Cone TypeClosed Nose
Over-crank ProtectionNo
Re-clockable FlangeNo
Solenoid AttachedYes
Voltage12

Replacement Part Number

Lester 6492
Arrowhead SDR0097, SDR0097-L
AC Delco Tools 323-1444, 323-1467, 323-1481, 323-1485, 336-1922, 336-1932
ACDelco 323-1622
Bosch SR8581N, SR8581X
Bosch Aftermarket SR8581X (Reman)
Delco 10465385, 10465550, 10465560, 12563907, 19136231, 19136241, 323-1063, 8000052, 89017412, 89017442, 9000853, 9000880, 9000927, 9000962
Delco-Remy 8000052
Denso 280-5129
General Motors 12563907, 12564110, 12573852, 12583115, 12592295, 89017442, 89017630
Isuzu 8890176300
J&N Electrical Products 410-12186, 410-12443, 410-12447
J&N 410-12186
JANNCO 410-12186R
IAT 510-6492L
Model Number PG260L
PIC 140-6034B
Remy 25062, 25903
Remy New 96220
Amsco DS-2220L
WAI 2-2200-DR, 6492N, 6492NM, 6492R
Xpart Global XSD6492

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.

Warranty Policy

Our Warranty Policy

Thank You for Choosing XPart Engine Electrical Products

At XPart Engine Electrical Products, our goal is 100% customer satisfaction. If you are unsatisfied for any reason and would like to return, exchange, or request a warranty claim, we are happy to assist. Please carefully read the policy below or contact our customer service team.

Returns

  • 30-day hassle-free return policy on all parts that remain in brand new condition.
  • Returns received after 30 days are subject to a 10% restocking fee.
  • If you ordered the wrong item, return it to:
    XPart Inc.
    11th Floor – 151 Yonge St
    Toronto, ON M5C 2W7
    (IMPORTANT: Print "XPART" and your full name on the return box.)
  • Email tracking number to: info@xpart.ca
  • Refunds issued to your original method of payment (Credit Card, PayPal, or E-Transfer).
  • Used, damaged, or poorly packaged items are non-refundable.
  • Return shipping is the customer’s responsibility unless the issue was caused by XPart Inc.

Exchanges

  • Exchanges accepted within 30 days of purchase.
  • Return wrong item to the same address listed above.
  • Include full name and “XPART” clearly on the box.
  • Email the tracking number to: info@xpart.ca
  • Price difference between original and replacement unit will be charged or refunded.
  • Customer is responsible for return shipping unless the exchange is due to XPart error.

Expedited Method

  • Need a replacement fast? Purchase the correct item.
  • Return the incorrect or faulty item to the address listed above.
  • Once received, a full refund will be issued for the returned item.

Warranty Replacement

All items from XPart Inc. include a one (1) year, one-time warranty covering part replacement only.

Important Warranty Conditions

  • Contact us before altering or installing the product: info@xpart.ca or call +1 844 44 XPART (97278).
  • Warranty is voided if the item is altered, abused, improperly installed, or poorly maintained.
  • Warranty is non-transferable.
  • Does NOT cover labor, towing, rentals, legal expenses, lost wages, or incidental costs.

Warranty Process

  • Return processing may take up to 5 business days from receipt.
  • After inspection, a replacement unit will be shipped.
  • Return Address:
    XPart Inc.
    11th Floor – 151 Yonge St
    Toronto, ON M5C 2W7
    (Print “XPART” and your full name on the box)
  • Email tracking to: info@xpart.ca or call +1 844 44 XPART (97278)

Contact Us

For returns, exchanges, or warranty service:

Email: info@xpart.ca
Phone: +1 844 44 XPART (97278)

About XPart Engine Electrical Products

We offer a wide selection of high-quality electrical components and replacement units for:

  • Outdoor Power Equipment
  • Agricultural Equipment
  • Construction Equipment
  • On-Highway Trucks
  • Auto & Light Trucks
  • Medium & Heavy-Duty Trucks
  • Marine Applications (Outboard and Inboard)
  • Power Sports (ATV, UTV, PWC)
  • Motorcycles
  • Small Engines
  • Hydraulic Lift Gate & Pump Motors

Available Product Lines: Starters, Alternators, Generators, Hydraulic Motors, and other mobile electrical components.

Overnight shipping is available on most products.

CUSTOMER REVIEWS

Write Your Own Review
You're reviewing:Xpart New Starter Motor for Cadillac Escalade; Chevrolet Avalanche, Express, Silverado; GMC; Hummer; Isuzu; Pontiac — 12V Clockwise PMGR, 1.7kW / 2.28HP, 11-Tooth, 28.9mm Gear OD
Make Model Engine Year
Cadillac ESCALADE ESV 364cu in, 6.0L V8 2003, 2004, 2005
Cadillac Escalade ESV 5967cc, 6.0L V8 2003, 2004, 2005
Cadillac ESCALADE EXT 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Cadillac Escalade EXT 5967cc, 6.0L V8 2002, 2003, 2004, 2005
Cadillac ESCALADE 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Cadillac Escalade 5967cc, 6.0L V8 2002, 2003, 2004, 2005
Cadillac Escalade 5967cc, 6.0L V8 2002, 2003, 2004, 2005
Chevrolet Avalanche 2500 8100cc, 8.1L V8 2003, 2004, 2005
Chevrolet C Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet CAMARO 350cu in, 5.7L V8 1998, 1999, 2000, 2001
Chevrolet CAMARO 350cu in, 5.7L V8 2002
Chevrolet Camaro 5700cc, 5.7L V8 1998, 1999, 2000, 2001
Chevrolet Camaro 5736cc, 5.7L V8 1998, 1999, 2000, 2001
Chevrolet CORVETTE 350cu in, 5.7L V8 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Chevrolet Corvette 5700cc, 5.7L V8 1997, 1998, 1999, 2000, 2001
Chevrolet Corvette 5700cc, 5.7L V8 2001
Chevrolet Corvette 5736cc, 5.7L V8 1997, 1998, 1999, 2000, 2001
Chevrolet Express 2500 5967cc, 6.0L V8 2003, 2004, 2005, 2006, 2007
Chevrolet Express 2500 5967cc, RWD, 6.0L V8 2003, 2004, 2005
Chevrolet Express 3500 4800cc, 4.8L V8 2005
Chevrolet Express 3500 5967cc, 6.0L V8 2003, 2004, 2005, 2006, 2007
Chevrolet EXPRESS VANS 364cu in, 6.0L V8 2003, 2004, 2005
Chevrolet K Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet R Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet SILVERADO 1500 HD 364cu in, 6.0L V8 2001
Chevrolet SILVERADO 1500 HD 364cu in, 6.0L V8 2002, 2003, 2005
Chevrolet Silverado 1500 HD 5967cc, 6.0L V8 2001
Chevrolet Silverado 1500 HD 5967cc, 6.0L V8 2001, 2002, 2003, 2005
Chevrolet SILVERADO 1500 364cu in, 6.0L V8 2003, 2004, 2005
Chevrolet Silverado 1500 5967cc, 6.0L V8 2003, 2004, 2005
Chevrolet SILVERADO 2500 HD 364cu in, 6.0L V8 2001
Chevrolet SILVERADO 2500 HD 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Chevrolet SILVERADO 2500 HD 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Chevrolet Silverado 2500 HD 5967cc, 4WD, 6.0L V8 , Gas 2003
Chevrolet Silverado 2500 HD 5967cc, 6.0L V8 2001
Chevrolet Silverado 2500 HD 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
Chevrolet SILVERADO 2500 364cu in, 6.0L V8 1999
Chevrolet SILVERADO 2500 364cu in, 6.0L V8 1999
Chevrolet SILVERADO 2500 364cu in, 6.0L V8 2000, 2001
Chevrolet SILVERADO 2500 364cu in, 6.0L V8 2002
Chevrolet SILVERADO 2500 364cu in, 6.0L V8 2002, 2003, 2004
Chevrolet Silverado 2500 5967cc, 6.0L V8 1999, 2000, 2001
Chevrolet Silverado 2500 5967cc, 6.0L V8 1999, 2000, 2001, 2002, 2003, 2004
Chevrolet Silverado 2500 5967cc, 6.0L V8, Gas 2001
Chevrolet SILVERADO 3500 364cu in, 6.0L V8 2001
Chevrolet SILVERADO 3500 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Chevrolet SILVERADO 3500 364cu in, 6.0L V8 2004, 2005
Chevrolet Silverado 3500 5967cc, 6.0L V8 2001
Chevrolet Silverado 3500 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
Chevrolet Silverado 3500 5967cc, 6.0L V8, Gas 2001
Chevrolet SSR 364cu in, 6.0L V8 2005
Chevrolet SSR 5300cc, 5.3L V8 2003, 2004
Chevrolet SSR 6000cc, 6.0L V8 2005
Chevrolet Suburban 2500 5967cc, 6.0L V8 2000, 2001
Chevrolet Suburban 2500 5967cc, 6.0L V8 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet SUBURBAN 364cu in, 6.0L V8 2000, 2001
Chevrolet SUBURBAN 364cu in, 6.0L V8 2002, 2003, 2004, 2005
Chevrolet Suburban 6000cc, 6L V8 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet V Series Pickups 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
Chevrolet Truck Silverado 2500 HD V8 6.0L 5967CC 364CID 2003-2003
Chevrolet Truck SSR V8 5.3L 5328CC 325CID 2003-2004
Chevrolet Truck SSR V8 6.0L 5967CC 364CID 2005-2005
Chevrolet/GMC W3500 Tiltmaster 364cu in, 6.0L V8, Gas 2003
Chevrolet/GMC W3500 Tiltmaster 364cu in, 6.0L V8, Gas 2004, 2005
Chevrolet/GMC W4500 Tiltmaster 364cu in, 6.0L V8, Gas 2003
Chevrolet/GMC W4500 Tiltmaster 364cu in, 6.0L V8, Gas 2004, 2005
GMC C Series 6000cc, 6L V8 1999, 2000, 2001, 2004, 2005
GMC K Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
GMC R Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
GMC Savana 2500 5967cc, 6.0L V8 2003, 2004, 2005, 2006, 2007
GMC Savana 2500 5967cc, RWD, 6.0L V8 2003, 2004, 2005
GMC Savana 3500 2005
GMC Savana 3500 5967cc, 6.0L V8 2003, 2004, 2005, 2006, 2007
GMC SAVANA VANS 364cu in, 6.0L V8 2003, 2004, 2005
GMC SIERRA 1500 HD 364cu in, 6.0L V8 2001
GMC SIERRA 1500 HD 364cu in, 6.0L V8 2002, 2003, 2005
GMC Sierra 1500 HD 5967cc, 6.0L V8 2001
GMC Sierra 1500 HD 5967cc, 6.0L V8 2001, 2002, 2003, 2005
GMC Sierra 1500 5967cc, 6.0L V8 2001
GMC Sierra 1500 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
GMC SIERRA 2500 HD 364cu in, 6.0L V8 2001
GMC SIERRA 2500 HD 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC SIERRA 2500 HD 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC Sierra 2500 HD 5967cc, 4WD, 6.0L V8 , Gas 2003
GMC Sierra 2500 HD 5967cc, 6.0L V8 2001
GMC Sierra 2500 HD 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
GMC SIERRA 2500 364cu in, 6.0L V8 1999
GMC SIERRA 2500 364cu in, 6.0L V8 1999
GMC SIERRA 2500 364cu in, 6.0L V8 2000, 2001
GMC SIERRA 2500 364cu in, 6.0L V8 2002
GMC SIERRA 2500 364cu in, 6.0L V8 2002, 2003, 2004
GMC Sierra 2500 5967cc, 6.0L V8 1999, 2000, 2001
GMC Sierra 2500 5967cc, 6.0L V8 1999, 2000, 2001, 2002, 2003, 2004
GMC Sierra 2500 5967cc, RWD, 6.0L V8 , Gas 2002
GMC SIERRA 3500 364cu in, 6.0L V8 2001
GMC SIERRA 3500 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC SIERRA 3500 364cu in, 6.0L V8 2004, 2005
GMC Sierra 3500 5967cc, 6.0L V8 2001
GMC Sierra 3500 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
GMC Sierra 3500 5967cc, 6.0L V8, Gas 2001
GMC Sierra C3 5967cc, 6.0L V8 2001
GMC SIERRA DENALI 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC V Series 6000cc, 6L V8 1999, 2000, 2001, 2002, 2003, 2004, 2005
GMC Yukon Denali 5967cc, 6.0L V8 2001
GMC Yukon Denali 5967cc, 6.0L V8 2001
GMC Yukon XL 1500 Denali 5967cc, 6.0L V8 2001
GMC Yukon XL 1500 Denali 5967cc, 6.0L V8 2001
GMC Yukon XL 1500 5967cc, 6.0L V8 2001
GMC Yukon XL 1500 5967cc, 6.0L V8 2002, 2003, 2004, 2005
GMC Yukon XL 2500 5967cc, 6.0L V8 2000, 2001
GMC Yukon XL 2500 5967cc, 6.0L V8 2000, 2001, 2002, 2003, 2004, 2005
GMC YUKON XL 364cu in, 6.0L V8 2000, 2001
GMC YUKON XL 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC Yukon XL 6000cc, 6L V8 2000, 2001, 2002, 2003, 2004, 2005
GMC YUKON 364cu in, 6.0L V8 2001
GMC YUKON 364cu in, 6.0L V8 2002, 2003, 2004, 2005
GMC Yukon 5967cc, 6.0L V8 2001
GMC Yukon 5967cc, 6.0L V8 2001, 2002, 2003, 2004, 2005
Hummer H2 364cu in, 6.0L V8 2003, 2004, 2005
Hummer H2 5967cc, 6.0L V8 2003, 2004, 2005
Hummer H2 5967cc, 6.0L V8 2005
Isuzu NPR 364cu in, 6.0L V8 2012
Isuzu NPR-HD 364cu in, 6.0L V8 2008
Isuzu Medium/Heavy Truck NPR V8 6.0L 5967CC 364CID 2003-2005
Pontiac FIREBIRD 350cu in, 5.7L V8 1998, 1999, 2000, 2001, 2002
Pontiac Firebird 5700cc, 5.7L V8 1998, 1999, 2000, 2001
Pontiac Firebird 5733cc, 5.7L V8 1998, 1999, 2000, 2001

More Information

More Information
Specification
Lester6492
ManufactureDelco (Not OEM)
FamilyDelco PG260M, PG260L
Case GroundingG
Critical NoteThis is a 6492 Style Unit With (2) Long Mounting Bolt Hole@ When Replacing 6482 Style Units (1) 451-68004 Bolt Is Required
Volt12
Power1.700 kw
HP2.280
ConditionNew
Rotation DirectionClockwise (Right)
Electric Starter TypePermanent Magnet Gear Reduction (PMGR)
Number of Teeth11
Gear OD1.138"
Gear OD28.900mm
Mount Hole ID 110mm
Mount Hole 1 TypeUnthreaded
Mount Hole 2 TypeUnthreaded
Power Rating1.6
DesignPMGR
Mounting Bolt Hole Quantity2
Mounting Hardware IncludedNo
Mounting Shims IncludedNo
Mounting TypePad
Nose Cone TypeClosed Nose
Over-crank ProtectionNo
Re-clockable FlangeNo
Solenoid AttachedYes
Voltage12
Replacement Part Number
Lester 6492
Arrowhead SDR0097, SDR0097-L
AC Delco Tools 323-1444, 323-1467, 323-1481, 323-1485, 336-1922, 336-1932
ACDelco 323-1622
Bosch SR8581N, SR8581X
Bosch Aftermarket SR8581X (Reman)
Delco 10465385, 10465550, 10465560, 12563907, 19136231, 19136241, 323-1063, 8000052, 89017412, 89017442, 9000853, 9000880, 9000927, 9000962
Delco-Remy 8000052
Denso 280-5129
General Motors 12563907, 12564110, 12573852, 12583115, 12592295, 89017442, 89017630
Isuzu 8890176300
J&N Electrical Products 410-12186, 410-12443, 410-12447
J&N 410-12186
JANNCO 410-12186R
IAT 510-6492L
Model Number PG260L
PIC 140-6034B
Remy 25062, 25903
Remy New 96220
Amsco DS-2220L
WAI 2-2200-DR, 6492N, 6492NM, 6492R
Why Xpart?
  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.

Reviews

Write Your Own Review
You're reviewing:Xpart New Starter Motor for Cadillac Escalade; Chevrolet Avalanche, Express, Silverado; GMC; Hummer; Isuzu; Pontiac — 12V Clockwise PMGR, 1.7kW / 2.28HP, 11-Tooth, 28.9mm Gear OD
