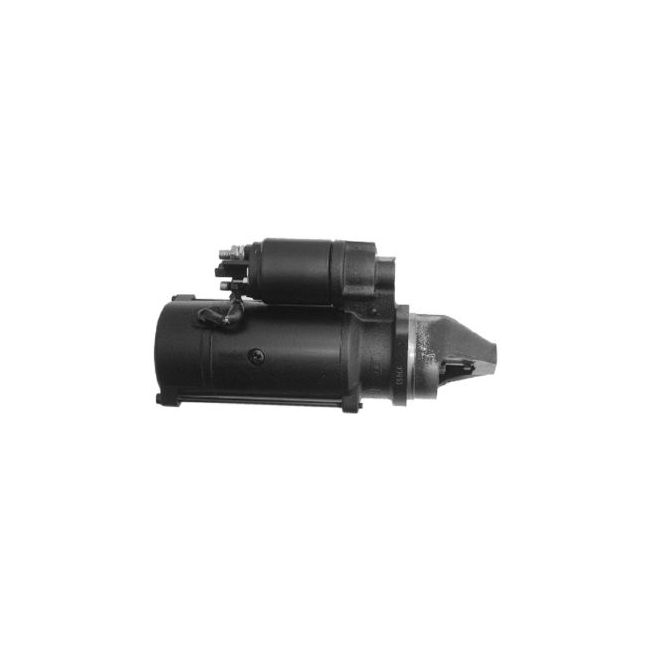

Xpart New Starter Motor for John Deere Diesel Tractors – 12V Clockwise PLGR Type, 3.4kW 4.56HP, 10-Tooth Pinion, 32mm Gear OD, Unthreaded Mount, Replaces Bosch , Delco , Letrika AZF4521

CAD$346.52
No Online Payment Required
                      Free Same Day Delivery(GTA)
                          Pay Upon Delivery(GTA)
1 - 2 Days Ontario&Quebec
2 - 5 Days All Over Canada
Availability:
Out of stock
SKU
XSL18422

Description

Make Model Engine Year
John Deere 1020 2.7L, Diesel
John Deere 1030 3-165, Diesel
John Deere 1030 3-165, Diesel
John Deere 1032
John Deere 1040 3-179, Diesel
John Deere 1040 3-179, Diesel
John Deere 1040 3-179, Diesel
John Deere 1042
John Deere 1052 4L 4 cyl 4.239 TZ-01
John Deere 1055 5.9L 6 cyl 6.539 DZ-03
John Deere 1065 5.9L 6 cyl 6.359 TZ-03
John Deere 1068
John Deere 1072 5.9L 6 cyl 6.359 TZ-03
John Deere 1075 5.9L 6 cyl 6.359 TZ-02
John Deere 1120 3-165, Diesel
John Deere 1120 3-165, Diesel
John Deere 1130
John Deere 1130
John Deere 1133
John Deere 1140 3-179, Diesel
John Deere 1140 3-179, Diesel
John Deere 1140 3-179, Diesel
John Deere 1144
John Deere 1155
John Deere 1157
John Deere 1158
John Deere 1165
John Deere 1165
John Deere 1166
John Deere 1169
John Deere 1174
John Deere 1175
John Deere 1175
John Deere 1177
John Deere 1350 3-179, Diesel
John Deere 1445F
John Deere 1530 164.0, Diesel
John Deere 1530 164.0, Diesel
John Deere 1550 3-179, Diesel
John Deere 1630
John Deere 1640
John Deere 1745F
John Deere 1750 3-179, Diesel
John Deere 1830
John Deere 1840
John Deere 1845F
John Deere 1850 3-179, Diesel
John Deere 1950 3-179, Diesel
John Deere 2020
John Deere 2030
John Deere 2030 219.0, Diesel
John Deere 2040 152.0, Diesel
John Deere 2054
John Deere 2120
John Deere 2130
John Deere 2140
John Deere 2150 3-179 , Diesel
John Deere 2155 3-179 , Diesel
John Deere 2240 164.0, Diesel
John Deere 2240 3-179 , Diesel
John Deere 2250
John Deere 2254
John Deere 2254
John Deere 2255 3-179 , Diesel
John Deere 2345F
John Deere 2350 4-239 , Diesel
John Deere 2355
John Deere 2355 4-239 , Diesel
John Deere 240 Series II 3029D
John Deere 240 3029D
John Deere 2440 4-219 , Diesel
John Deere 2450
John Deere 250 Series II 3029T
John Deere 250 3029T
John Deere 2550 4-239 , Diesel
John Deere 2555 4-239 , Diesel
John Deere 260 Series II 3029T
John Deere 260 3029T
John Deere 2650
John Deere 270 Series II 4045D
John Deere 270 4045D
John Deere 2750 4-239 , Diesel
John Deere 2755 4-239 , Diesel
John Deere 280 Series II 4045T
John Deere 280 4045T
John Deere 2840 6-329 , Diesel
John Deere 2850
John Deere 2855N 4-239 , Diesel
John Deere 2940 6-359 , Diesel
John Deere 2950 6-359 , Diesel
John Deere 2955 6-359 , Diesel
John Deere 3030
John Deere 3040
John Deere 3050 6-359, Diesel
John Deere 3055 359.0, Diesel
John Deere 3100 3-179, Diesel
John Deere 3110
John Deere 3120 60
John Deere 3130 6-359 , Diesel
John Deere 3140 6-359 , Diesel
John Deere 3150 6-359 , Diesel
John Deere 3155 6-359 , Diesel
John Deere 3200
John Deere 3210
John Deere 3255 6-359 , Diesel
John Deere 3300 4-276, Diesel
John Deere 3310
John Deere 3350 6-359, Diesel
John Deere 3400 4-239, Diesel
John Deere 3410
John Deere 3640 6-359, Diesel
John Deere 3650 6-359, Diesel
John Deere 4425 539.0, Diesel 1988
John Deere 4425 539.0, Diesel 1988
John Deere 4435 539.0, Diesel 1994
John Deere 4435 539.0, Diesel 1994
John Deere 5076E 4-276, Diesel
John Deere 5076EF 4-276, Diesel
John Deere 5076EL 4-276, Diesel
John Deere 5078E 4-276, Diesel
John Deere 5078E 4-276, Diesel
John Deere 5080M 4-276, Diesel
John Deere 5080M 4-276, Diesel
John Deere 5080R 4-276, Diesel
John Deere 5082E 4-276, Diesel
John Deere 5090E 4-276, Diesel
John Deere 5090M 4-276, Diesel
John Deere 5090M 4-276, Diesel
John Deere 5090R 4-276, Diesel
John Deere 5403 3-179, Diesel
John Deere 5403 3-179, Diesel
John Deere 5410 4.5L , DIESEL
John Deere 5410N 4-276, Diesel
John Deere 5415
John Deere 5415 4-276, Diesel
John Deere 5415 4-276, Diesel
John Deere 5415H 4-276, Diesel
John Deere 5415H 4-276, Diesel
John Deere 5415N 4-276, Diesel
John Deere 5420 4.5L, Diesel
John Deere 5420 4.5L, Diesel
John Deere 5420 4.5L, Diesel
John Deere 5420N 4.5L, Diesel
John Deere 5420N 4.5L, Diesel
John Deere 5510 4.5L , Diesel
John Deere 5510N 4.5L , Diesel
John Deere 5520 4.5L , Diesel
John Deere 5520N 4.5L , Diesel
John Deere 5605 4-276, Diesel
John Deere 5605 4-276, Diesel
John Deere 5615 4-276, Diesel
John Deere 5615 4-276, Diesel
John Deere 5615 4-276, Diesel
John Deere 5620 4-276, Diesel
John Deere 5620 4-276, Diesel
John Deere 5705 4-276, Diesel
John Deere 5705 4-276, Diesel
John Deere 5715 4-276, Diesel
John Deere 5715 4-276, Diesel
John Deere 5715 4-276, Diesel
John Deere 5715HC 4-276, Diesel
John Deere 5715HC 4-276, Diesel
John Deere 6010
John Deere 6010
John Deere 6100
John Deere 6100 4-239 , Diesel
John Deere 6110 4-276, Diesel
John Deere 6110 4-276, Diesel
John Deere 6110L 4-276, Diesel
John Deere 6110L 4-276, Diesel
John Deere 6200 4-239 , Diesel
John Deere 6200L
John Deere 6205
John Deere 6205
John Deere 6210 4-276, Diesel
John Deere 6210 4-276, Diesel
John Deere 6210L 4-276, Diesel
John Deere 6210L 4-276, Diesel
John Deere 6300 4-239 , Diesel
John Deere 6300L
John Deere 6310
John Deere 6310
John Deere 6310L
John Deere 6310L
John Deere 6310S
John Deere 6310S
John Deere 6400 4-276 , Diesel
John Deere 6400L
John Deere 6400SP
John Deere 6400SP
John Deere 6410
John Deere 6410
John Deere 6410L
John Deere 6410L
John Deere 6410S
John Deere 6410S
John Deere 6500
John Deere 6500L
John Deere 6510L 4.5L
John Deere 6600
John Deere 6605 6.8L
John Deere 820 3-152, Diesel
John Deere 820 3-152, Diesel
John Deere 820 3-152, Diesel
John Deere 830 3-152, Diesel
John Deere 830 3-152, Diesel
John Deere 840 Diesel
John Deere 920
John Deere 925
John Deere 930
John Deere 932
John Deere 932
John Deere 935
John Deere 940
John Deere 942
John Deere 942
John Deere 945
John Deere 945
John Deere 952
John Deere 955
John Deere 965
John Deere 965
John Deere 968
John Deere 975
John Deere 975
John Deere 985
John Deere 985
John Deere CD3029DF Genset - Code 3008
John Deere CD3029DF Genset - Code 3008
Bobcat 975 Skid Steer Loader 0-0
Clark 795 Skid Steer Loader 1989-1990
Compac T40D Roller (Static and Vibratory) 0-2016
Compac T40PD Roller (Static and Vibratory) 0-2016
Compac T50D Roller (Static and Vibratory) 0-2016
Compac T50PD Roller (Static and Vibratory) 0-2016
Compac T60D Roller (Static and Vibratory) 0-2016
Compac T60PD Roller (Static and Vibratory) 0-2016
Ingersoll Rand 185 Air Compressor 1986-1996
Ingersoll Rand P 185 Neptune4 Compressors 0-0
Ingersoll Rand P 185 Platinium4 Compressors 0-0
Ingersoll Rand P 250 Neptune4 Compressors 0-0
Ingersoll Rand P 250 Omega4 Compressors 0-0
John Deere 350D Crawlers 1982-1990
John Deere 355D Crawlers 1983-1990
John Deere 450A Crawlers 1973-1982
John Deere 450B Crawlers 1973-1982
John Deere 450D Crawlers 1986-1992
John Deere 450E Crawlers 1986-1992
John Deere 455B Crawlers 1982-1990
John Deere 4045 Engine - Industrial 0-0
John Deere 4045DF Engine - Industrial 0-0
John Deere 4045TF Engine - Industrial 0-0
John Deere 6059DF Engine - Industrial 0-0
John Deere 6059HF Engine - Industrial 0-0
John Deere 6059TF Engine - Industrial 0-0
John Deere 6068 Engine - Industrial 0-0
John Deere 6068DF Engine - Industrial 0-0
John Deere 6068HF Engine - Industrial 0-0
John Deere 6068TF Engine - Industrial 0-0
John Deere 308B Excavators 1984-1988
John Deere 4039DL4 Irrigation Set 1987-1994
John Deere 4045TL4 Irrigation Set 1982-2001
John Deere 410C Loaders - Backhoe 1987-1992
John Deere 300D Off-Highway Articulated Truck 0-0
John Deere 250L3 Skid Steer Loader 0-0
John Deere 270L4 Skid Steer Loader 0-0
John Deere 280L4 Skid Steer Loader 0-0
John Deere 400A Skidder 1973-1995
John Deere 482C Straight Mast Forklift 0-0
John Deere 210 Tractor 1987-1992
John Deere 210LE Tractor 0-0
John Deere 310E Tractor 0-0
John Deere 310G Tractor 0-0
John Deere 310S Tractor 0-0
John Deere 315S Tractor 0-0
John Deere 350A Tractor 1971-1973
John Deere 410G Tractor 0-0
John Deere 4045D Trailer Mounted Generator Sets 1997-2007
John Deere 4045DL4 Trailer Mounted Generator Sets 1987-2002
John Deere 3430 Windrower 0-0
John Deere 3830 Windrower 0-0
John Deere 3930 Windrower 1985-1992

Specification

Lester 18422, 18475, 3579, 6860
Family Letrika/MAHLE AZF45
Voltage 12
Power 3.400 kW
Horsepower 4.559
Condition New
Rotation Direction Clockwise (Right)
Electric Starter Type Planetary Gear Reduction (PLGR)
Number of Teeth 10
Gear OD 1.260"
Gear OD 32mm
Mount Hole ID 1 13.400mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Manufacture Iskra (Not OEM)
Mounting Bolt Hole Quantity 2
Mounting Type Flange

Replacement Part Number

Arrowhead IS0793, MS89, SRA0003
Bosch 0001367075, 0001369001, 0001369022, 0986012420, 0986014730, 0986014740
Delco 820089, DRS2420
J&N Electrical Products 410-24070, 410-29029, 410-16003
John Deere AJ59342, AL110504, AL110597, AL110598, AL70850, AT23401, RE501002, RE505670, RE505745, RE507670, RE509658, RE529594, RE549296, SE501851, TY25952, TY6720, RE501713, RE504814, TY29551, TY66515
Leece Neville 35259580, M100317, M100R2017SE
Lester 18422, 18475, 3579, 6860
Letrika/Iskra 11.130.793, 11.131.374, AZF4521, AZF4596, IS 0793, 11.130.876
Letrika Tech AZF4284, AZJ3307
Letrika Sales IS0793
Lucas Electric LRS00565, LRS01089, LRS01484
Mahle MS89, MS 89
Claas 11320110
Fiat 73328003
IAT 680-18422
PIC 182-229, 182-229A, 182-229B, 182-229C
Renault 6005012976, 7700044184
Sparex 359750
Wagner MS 89
WAI 18422N, MS89
Xpart Global XSL18422

Why Xpart?

  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.

Warranty Policy

Our Warranty Policy

Thank You for Choosing XPart Engine Electrical Products

At XPart Engine Electrical Products, our goal is 100% customer satisfaction. If you are unsatisfied for any reason and would like to return, exchange, or request a warranty claim, we are happy to assist. Please carefully read the policy below or contact our customer service team.

Returns

  • 30-day hassle-free return policy on all parts that remain in brand new condition.
  • Returns received after 30 days are subject to a 10% restocking fee.
  • If you ordered the wrong item, return it to:
    XPart Inc.
    11th Floor – 151 Yonge St
    Toronto, ON M5C 2W7

    (IMPORTANT: Print "XPART" and your full name on the return box.)
  • Email tracking number to: info@xpart.ca
  • Refunds issued to your original method of payment (Credit Card, PayPal, or E-Transfer).
  • Used, damaged, or poorly packaged items are non-refundable.
  • Return shipping is the customer’s responsibility unless the issue was caused by XPart Inc.

Exchanges

  • Exchanges accepted within 30 days of purchase.
  • Return wrong item to the same address listed above.
  • Include full name and “XPART” clearly on the box.
  • Email the tracking number to: info@xpart.ca
  • Price difference between original and replacement unit will be charged or refunded.
  • Customer is responsible for return shipping unless the exchange is due to XPart error.

Expedited Method

  • Need a replacement fast? Purchase the correct item.
  • Return the incorrect or faulty item to the address listed above.
  • Once received, a full refund will be issued for the returned item.

Warranty Replacement

All items from XPart Inc. include a one (1) year, one-time warranty covering part replacement only.

Important Warranty Conditions

  • Contact us before altering or installing the product: info@xpart.ca or call +1 844 44 XPART (97278).
  • Warranty is voided if the item is altered, abused, improperly installed, or poorly maintained.
  • Warranty is non-transferable.
  • Does NOT cover labor, towing, rentals, legal expenses, lost wages, or incidental costs.

Warranty Process

  • Return processing may take up to 5 business days from receipt.
  • After inspection, a replacement unit will be shipped.
  • Return Address:
    XPart Inc.
    11th Floor – 151 Yonge St
    Toronto, ON M5C 2W7

    (Print “XPART” and your full name on the box)
  • Email tracking to: info@xpart.ca or call +1 844 44 XPART (97278)

Contact Us

For returns, exchanges, or warranty service:

Email: info@xpart.ca
Phone: +1 844 44 XPART (97278)

About XPart Engine Electrical Products

We offer a wide selection of high-quality electrical components and replacement units for:

  • Outdoor Power Equipment
  • Agricultural Equipment
  • Construction Equipment
  • On-Highway Trucks
  • Auto & Light Trucks
  • Medium & Heavy-Duty Trucks
  • Marine Applications (Outboard and Inboard)
  • Power Sports (ATV, UTV, PWC)
  • Motorcycles
  • Small Engines
  • Hydraulic Lift Gate & Pump Motors

Available Product Lines: Starters, Alternators, Generators, Hydraulic Motors, and other mobile electrical components.

Overnight shipping is available on most products.

CUSTOMER REVIEWS

Write Your Own Review
You're reviewing:Xpart New Starter Motor for John Deere Diesel Tractors – 12V Clockwise PLGR Type, 3.4kW 4.56HP, 10-Tooth Pinion, 32mm Gear OD, Unthreaded Mount, Replaces Bosch , Delco , Letrika AZF4521
Make Model Engine Year
John Deere 1020 2.7L, Diesel
John Deere 1030 3-165, Diesel
John Deere 1030 3-165, Diesel
John Deere 1032
John Deere 1040 3-179, Diesel
John Deere 1040 3-179, Diesel
John Deere 1040 3-179, Diesel
John Deere 1042
John Deere 1052 4L 4 cyl 4.239 TZ-01
John Deere 1055 5.9L 6 cyl 6.539 DZ-03
John Deere 1065 5.9L 6 cyl 6.359 TZ-03
John Deere 1068
John Deere 1072 5.9L 6 cyl 6.359 TZ-03
John Deere 1075 5.9L 6 cyl 6.359 TZ-02
John Deere 1120 3-165, Diesel
John Deere 1120 3-165, Diesel
John Deere 1130
John Deere 1130
John Deere 1133
John Deere 1140 3-179, Diesel
John Deere 1140 3-179, Diesel
John Deere 1140 3-179, Diesel
John Deere 1144
John Deere 1155
John Deere 1157
John Deere 1158
John Deere 1165
John Deere 1165
John Deere 1166
John Deere 1169
John Deere 1174
John Deere 1175
John Deere 1175
John Deere 1177
John Deere 1350 3-179, Diesel
John Deere 1445F
John Deere 1530 164.0, Diesel
John Deere 1530 164.0, Diesel
John Deere 1550 3-179, Diesel
John Deere 1630
John Deere 1640
John Deere 1745F
John Deere 1750 3-179, Diesel
John Deere 1830
John Deere 1840
John Deere 1845F
John Deere 1850 3-179, Diesel
John Deere 1950 3-179, Diesel
John Deere 2020
John Deere 2030
John Deere 2030 219.0, Diesel
John Deere 2040 152.0, Diesel
John Deere 2054
John Deere 2120
John Deere 2130
John Deere 2140
John Deere 2150 3-179 , Diesel
John Deere 2155 3-179 , Diesel
John Deere 2240 164.0, Diesel
John Deere 2240 3-179 , Diesel
John Deere 2250
John Deere 2254
John Deere 2254
John Deere 2255 3-179 , Diesel
John Deere 2345F
John Deere 2350 4-239 , Diesel
John Deere 2355
John Deere 2355 4-239 , Diesel
John Deere 240 Series II 3029D
John Deere 240 3029D
John Deere 2440 4-219 , Diesel
John Deere 2450
John Deere 250 Series II 3029T
John Deere 250 3029T
John Deere 2550 4-239 , Diesel
John Deere 2555 4-239 , Diesel
John Deere 260 Series II 3029T
John Deere 260 3029T
John Deere 2650
John Deere 270 Series II 4045D
John Deere 270 4045D
John Deere 2750 4-239 , Diesel
John Deere 2755 4-239 , Diesel
John Deere 280 Series II 4045T
John Deere 280 4045T
John Deere 2840 6-329 , Diesel
John Deere 2850
John Deere 2855N 4-239 , Diesel
John Deere 2940 6-359 , Diesel
John Deere 2950 6-359 , Diesel
John Deere 2955 6-359 , Diesel
John Deere 3030
John Deere 3040
John Deere 3050 6-359, Diesel
John Deere 3055 359.0, Diesel
John Deere 3100 3-179, Diesel
John Deere 3110
John Deere 3120 60
John Deere 3130 6-359 , Diesel
John Deere 3140 6-359 , Diesel
John Deere 3150 6-359 , Diesel
John Deere 3155 6-359 , Diesel
John Deere 3200
John Deere 3210
John Deere 3255 6-359 , Diesel
John Deere 3300 4-276, Diesel
John Deere 3310
John Deere 3350 6-359, Diesel
John Deere 3400 4-239, Diesel
John Deere 3410
John Deere 3640 6-359, Diesel
John Deere 3650 6-359, Diesel
John Deere 4425 539.0, Diesel 1988
John Deere 4425 539.0, Diesel 1988
John Deere 4435 539.0, Diesel 1994
John Deere 4435 539.0, Diesel 1994
John Deere 5076E 4-276, Diesel
John Deere 5076EF 4-276, Diesel
John Deere 5076EL 4-276, Diesel
John Deere 5078E 4-276, Diesel
John Deere 5078E 4-276, Diesel
John Deere 5080M 4-276, Diesel
John Deere 5080M 4-276, Diesel
John Deere 5080R 4-276, Diesel
John Deere 5082E 4-276, Diesel
John Deere 5090E 4-276, Diesel
John Deere 5090M 4-276, Diesel
John Deere 5090M 4-276, Diesel
John Deere 5090R 4-276, Diesel
John Deere 5403 3-179, Diesel
John Deere 5403 3-179, Diesel
John Deere 5410 4.5L , DIESEL
John Deere 5410N 4-276, Diesel
John Deere 5415
John Deere 5415 4-276, Diesel
John Deere 5415 4-276, Diesel
John Deere 5415H 4-276, Diesel
John Deere 5415H 4-276, Diesel
John Deere 5415N 4-276, Diesel
John Deere 5420 4.5L, Diesel
John Deere 5420 4.5L, Diesel
John Deere 5420 4.5L, Diesel
John Deere 5420N 4.5L, Diesel
John Deere 5420N 4.5L, Diesel
John Deere 5510 4.5L , Diesel
John Deere 5510N 4.5L , Diesel
John Deere 5520 4.5L , Diesel
John Deere 5520N 4.5L , Diesel
John Deere 5605 4-276, Diesel
John Deere 5605 4-276, Diesel
John Deere 5615 4-276, Diesel
John Deere 5615 4-276, Diesel
John Deere 5615 4-276, Diesel
John Deere 5620 4-276, Diesel
John Deere 5620 4-276, Diesel
John Deere 5705 4-276, Diesel
John Deere 5705 4-276, Diesel
John Deere 5715 4-276, Diesel
John Deere 5715 4-276, Diesel
John Deere 5715 4-276, Diesel
John Deere 5715HC 4-276, Diesel
John Deere 5715HC 4-276, Diesel
John Deere 6010
John Deere 6010
John Deere 6100
John Deere 6100 4-239 , Diesel
John Deere 6110 4-276, Diesel
John Deere 6110 4-276, Diesel
John Deere 6110L 4-276, Diesel
John Deere 6110L 4-276, Diesel
John Deere 6200 4-239 , Diesel
John Deere 6200L
John Deere 6205
John Deere 6205
John Deere 6210 4-276, Diesel
John Deere 6210 4-276, Diesel
John Deere 6210L 4-276, Diesel
John Deere 6210L 4-276, Diesel
John Deere 6300 4-239 , Diesel
John Deere 6300L
John Deere 6310
John Deere 6310
John Deere 6310L
John Deere 6310L
John Deere 6310S
John Deere 6310S
John Deere 6400 4-276 , Diesel
John Deere 6400L
John Deere 6400SP
John Deere 6400SP
John Deere 6410
John Deere 6410
John Deere 6410L
John Deere 6410L
John Deere 6410S
John Deere 6410S
John Deere 6500
John Deere 6500L
John Deere 6510L 4.5L
John Deere 6600
John Deere 6605 6.8L
John Deere 820 3-152, Diesel
John Deere 820 3-152, Diesel
John Deere 820 3-152, Diesel
John Deere 830 3-152, Diesel
John Deere 830 3-152, Diesel
John Deere 840 Diesel
John Deere 920
John Deere 925
John Deere 930
John Deere 932
John Deere 932
John Deere 935
John Deere 940
John Deere 942
John Deere 942
John Deere 945
John Deere 945
John Deere 952
John Deere 955
John Deere 965
John Deere 965
John Deere 968
John Deere 975
John Deere 975
John Deere 985
John Deere 985
John Deere CD3029DF Genset - Code 3008
John Deere CD3029DF Genset - Code 3008
Bobcat 975 Skid Steer Loader 0-0
Clark 795 Skid Steer Loader 1989-1990
Compac T40D Roller (Static and Vibratory) 0-2016
Compac T40PD Roller (Static and Vibratory) 0-2016
Compac T50D Roller (Static and Vibratory) 0-2016
Compac T50PD Roller (Static and Vibratory) 0-2016
Compac T60D Roller (Static and Vibratory) 0-2016
Compac T60PD Roller (Static and Vibratory) 0-2016
Ingersoll Rand 185 Air Compressor 1986-1996
Ingersoll Rand P 185 Neptune4 Compressors 0-0
Ingersoll Rand P 185 Platinium4 Compressors 0-0
Ingersoll Rand P 250 Neptune4 Compressors 0-0
Ingersoll Rand P 250 Omega4 Compressors 0-0
John Deere 350D Crawlers 1982-1990
John Deere 355D Crawlers 1983-1990
John Deere 450A Crawlers 1973-1982
John Deere 450B Crawlers 1973-1982
John Deere 450D Crawlers 1986-1992
John Deere 450E Crawlers 1986-1992
John Deere 455B Crawlers 1982-1990
John Deere 4045 Engine - Industrial 0-0
John Deere 4045DF Engine - Industrial 0-0
John Deere 4045TF Engine - Industrial 0-0
John Deere 6059DF Engine - Industrial 0-0
John Deere 6059HF Engine - Industrial 0-0
John Deere 6059TF Engine - Industrial 0-0
John Deere 6068 Engine - Industrial 0-0
John Deere 6068DF Engine - Industrial 0-0
John Deere 6068HF Engine - Industrial 0-0
John Deere 6068TF Engine - Industrial 0-0
John Deere 308B Excavators 1984-1988
John Deere 4039DL4 Irrigation Set 1987-1994
John Deere 4045TL4 Irrigation Set 1982-2001
John Deere 410C Loaders - Backhoe 1987-1992
John Deere 300D Off-Highway Articulated Truck 0-0
John Deere 250L3 Skid Steer Loader 0-0
John Deere 270L4 Skid Steer Loader 0-0
John Deere 280L4 Skid Steer Loader 0-0
John Deere 400A Skidder 1973-1995
John Deere 482C Straight Mast Forklift 0-0
John Deere 210 Tractor 1987-1992
John Deere 210LE Tractor 0-0
John Deere 310E Tractor 0-0
John Deere 310G Tractor 0-0
John Deere 310S Tractor 0-0
John Deere 315S Tractor 0-0
John Deere 350A Tractor 1971-1973
John Deere 410G Tractor 0-0
John Deere 4045D Trailer Mounted Generator Sets 1997-2007
John Deere 4045DL4 Trailer Mounted Generator Sets 1987-2002
John Deere 3430 Windrower 0-0
John Deere 3830 Windrower 0-0
John Deere 3930 Windrower 1985-1992

More Information

More Information
Specification
Lester 18422, 18475, 3579, 6860
Family Letrika/MAHLE AZF45
Voltage 12
Power 3.400 kW
Horsepower 4.559
Condition New
Rotation Direction Clockwise (Right)
Electric Starter Type Planetary Gear Reduction (PLGR)
Number of Teeth 10
Gear OD 1.260"
Gear OD 32mm
Mount Hole ID 1 13.400mm
Mount Hole 1 Type Unthreaded
Mount Hole 2 Type Unthreaded
Manufacture Iskra (Not OEM)
Mounting Bolt Hole Quantity 2
Mounting Type Flange
Replacement Part Number
Arrowhead IS0793, MS89, SRA0003
Bosch 0001367075, 0001369001, 0001369022, 0986012420, 0986014730, 0986014740
Delco 820089, DRS2420
J&N Electrical Products 410-24070, 410-29029, 410-16003
John Deere AJ59342, AL110504, AL110597, AL110598, AL70850, AT23401, RE501002, RE505670, RE505745, RE507670, RE509658, RE529594, RE549296, SE501851, TY25952, TY6720, RE501713, RE504814, TY29551, TY66515
Leece Neville 35259580, M100317, M100R2017SE
Lester 18422, 18475, 3579, 6860
Letrika/Iskra 11.130.793, 11.131.374, AZF4521, AZF4596, IS 0793, 11.130.876
Letrika Tech AZF4284, AZJ3307
Letrika Sales IS0793
Lucas Electric LRS00565, LRS01089, LRS01484
Mahle MS89, MS 89
Claas 11320110
Fiat 73328003
IAT 680-18422
PIC 182-229, 182-229A, 182-229B, 182-229C
Renault 6005012976, 7700044184
Sparex 359750
Wagner MS 89
WAI 18422N, MS89
Why Xpart?
  • All-Terrain Durability: Engineered for reliable, long-lasting performance in the harshest conditions.
  • Reliable Cold Starts: Quality-tested to deliver consistent ignition power in all weather, including freezing temperatures.
  • 100% Brand New & Premium Quality: Not remanufactured or rebuilt; constructed with high-grade materials to meet or exceed OEM durability standards.
  • Easy, Direct-Fit Installation: Designed for a perfect plug-and-play fit—no modifications required.
  • Precision Engineered & Quality Tested: Built and rigorously tested to ensure dependable starting performance and extended lifespan.
  • OEM Compatible: Meets exact factory specifications for seamless integration and optimal function.
  • Built to Last & Warranty-Backed: Heavy-duty construction with premium components plus a 1-year limited replacement warranty for peace of mind.
  • Trusted by Professionals & Vehicle Owners: Our starter motors deliver exceptional value and reliable performance for those who demand the best.
  • Committed to Excellence: We provide premium-quality auto parts designed to fit perfectly, perform flawlessly, and last longer.



Installation & Compatibility Tips

  • Always verify OEM part number and physical dimensions (gear OD, tooth count, mount hole spacing and DE housing) before purchase.
  • Disconnect the negative battery terminal before removing or installing the starter.
  • Inspect flywheel/flexplate teeth and starter mounting flange prior to installation; replace if damaged.

Reviews

Write Your Own Review
You're reviewing:Xpart New Starter Motor for John Deere Diesel Tractors – 12V Clockwise PLGR Type, 3.4kW 4.56HP, 10-Tooth Pinion, 32mm Gear OD, Unthreaded Mount, Replaces Bosch , Delco , Letrika AZF4521
